SELECT A DIAGRAM

01 - Compressor


02 - Controls (gt2122neew)


03 - Freezer Compartment


04 - Freezer Inner Door


05 - Freezer Outer Door


06 - Fresh Food Inner Door


07 - Fresh Food Outer Door


08 - Shelves & Accessories


09 - Wiring Information

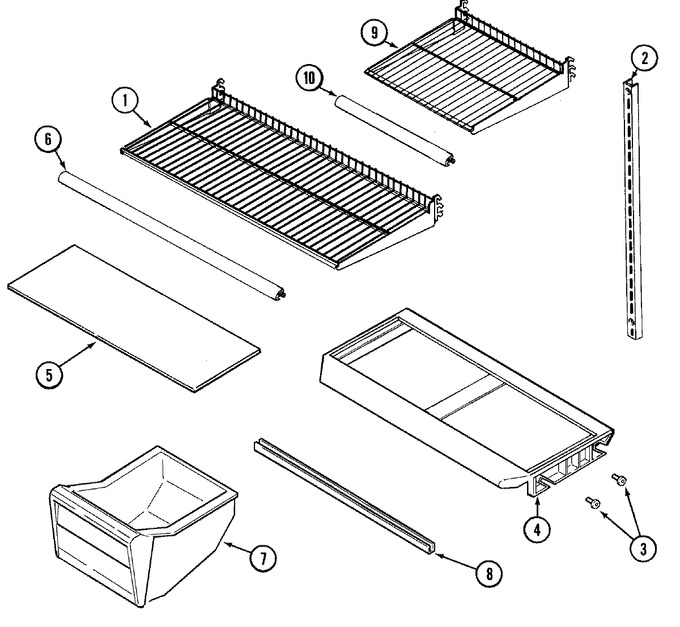

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002606		Shelf, Full	10	Appelez-nous	-
2	61002253		Rail, Cant. Shelf	10	Appelez-nous	-
2	400037-28		Screw	10	Appelez-nous	-
2	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
2	61002254		Rail, Shelf Support (lt/rt)	10	Appelez-nous	-
3	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
3	67764-1		Support, Crisper Shelf	10			$ 8.05
4	61002529		Shelf, Crisper	10	Appelez-nous	-
5	61002532		Glass, Crisper Shelf	10			$ 85.72
6	61002691		Trim, Full Shelf (frt)	10	Appelez-nous	-
7	61002820		Pan, Crisper	10	Appelez-nous	-
8	61002535		Support, Crisper Pan	10	Appelez-nous	-
9	61002688		Shelf, Split (rt)	10	Appelez-nous	-
10	61002821		Trim, Split Shelf (frt)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
