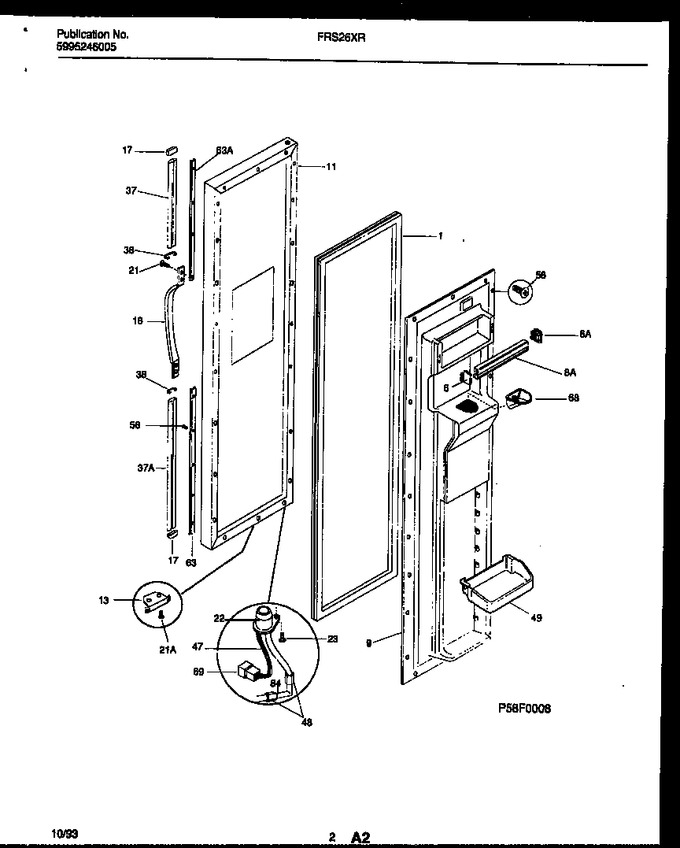

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215734313 | Gasket-frzr Door, Magnetic, White |
|
$ 244.78 | |||||
| 6 | 5303297813 | Support-door Rack, Lh |
|
$ 49.77 | |||||
| 9 | 215434201 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 215781201 | Panel-frzr Door, White, W/ Foam Insulatn |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 17 | 215100001 | Handle End, White |
|
- | |||||
| 18 | 215068801 | Handle-door, White |
|
- | |||||
| 21 | 215732700 | Screw, Pan Head, 10-12 X 1/2 |
|
- | |||||
| 22 | 215615300 | Bushing-door,bronze |
|
- | |||||
| 23 | 5303001020 | Screw, Cr Flat Head, 8-32(d) X 1/2 |
|
- | |||||
| 37 | 215117404 | Trim-handle, 13.69``, White, Upper |
|
- | |||||
| 38 | 215620101 | Band-decorative, Handle |
|
- | |||||
| 47 | 215667300 | Harness-wiring, Frzr Door |
|
- | |||||
| 48 | 5308000200 | Nut, 7/16 X 20, Nylon |
|
- | |||||
| 49 | 215390501 | Bin-door, (3) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 63 | 215117207 | Rail-handle Trim Mtg, 26.43``, Lower |
|
- | |||||
| 68 | 215327001 | Chute, Ice |
|
- | |||||
| 69 | 215341900 | Connector-door Harn |
|
- | |||||
| 84 | 5308010289 | Elbow-water Tube |
|
$ 45.84 | |||||
| *88382 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 21A | 215218600 | Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
- | |||||
| 22A | 215598900 | Washer-flat, .691 X 1 X .05, Zinc, I & W Hinge Brkt (non-illustrated) |
|
- | |||||
| 37A | 215117403 | Trim-handle, 29.41``, White, Lower |
|
- | |||||
| 63A | 215117201 | Rail-handle Trim Mtg, 11.95``, Upper |
|
- | |||||
| 6A | 5303297814 | Support-door Rack, Rh |
|
$ 52.50 | |||||
| 8A | 215474024 | Rack-door |
|
- |
