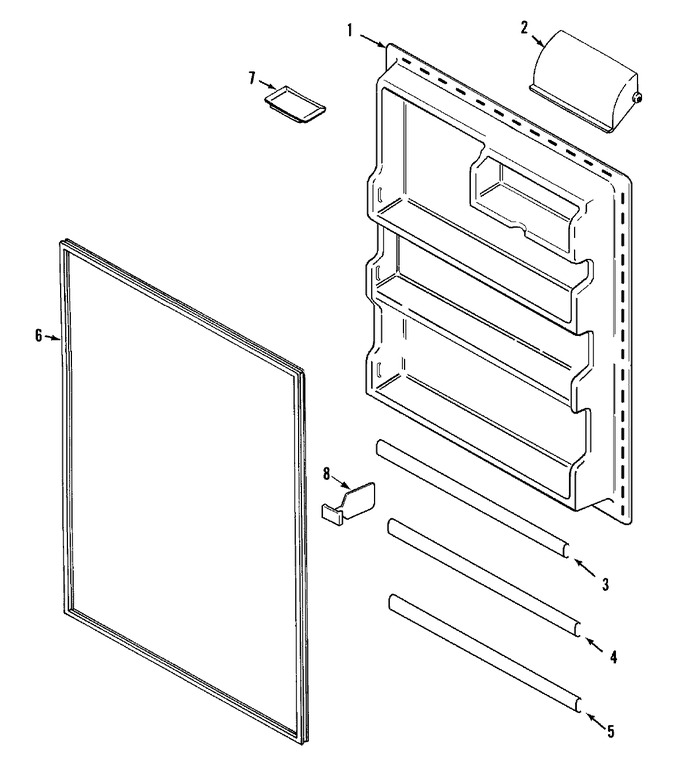

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005749		Screw	12	Appelez-nous	-
1	61002742		Insert, Liner Support	12	Appelez-nous	-
1	61002741		Insert, Liner Support	12			$ 30.66
1	61002548		Liner, F.f. Door	12	Appelez-nous	-
2	61002696		Door, Dairy	12	Appelez-nous	-
3	61002610		Trim, Door Shelf	12	Appelez-nous	-
4	61002610		Trim, Door Shelf	12	Appelez-nous	-
5	61006161		Trim, Door Shelf (27 3/4``)	12	Appelez-nous	-
6	WP61004010		Seal, F.f. Door (wht)   (Replaces: 61004010)	12			$ 296.04
7	29936-2		Tray, Butter	12	Appelez-nous	-
8	61003098		Organizer, Shelf	12	Appelez-nous	-
