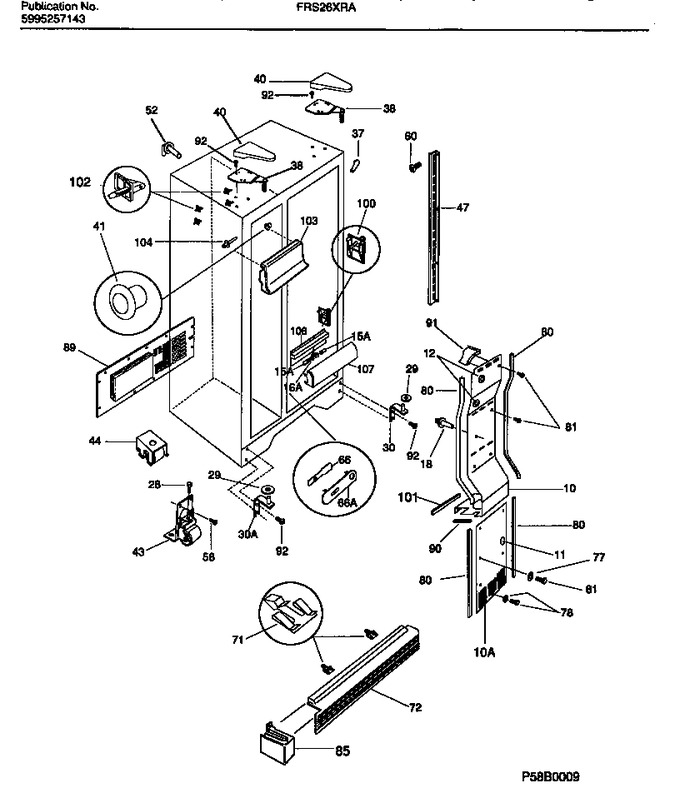

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5303297838 | Cover-air Duct |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 12 | 5303001147 | Plug-harness Hole (Replaces: 215230400) |
|
$ 22.30 | |||||
| 18 | 5303289043 | Support-air Duct Cvr, 2.55`` Long |
|
- | |||||
| 28 | 5303289062 | Bolt-roller Adj,hex Head,5/16-24 X 7/8 |
|
- | |||||
| 29 | 215003200 | Washer, .40x.63x .16,nylon |
|
$ 54.86 | |||||
| 30 | 215008900 | Bracket-lower Hinge, W/hinge Pin |
|
- | |||||
| 37 | 5303202336 | Trim-cabinet Corner, White |
|
- | |||||
| 38 | 215595701 | Bracket-upper Hinge, W/closer, White |
|
- | |||||
| 40 | 5303288945 | Cover-upper Hinge, White |
|
- | |||||
| 41 | 5304509705 | Grommet, Shelf/rod Mtg, Rh (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 43 | 5303289059 | Roller Assy,front,(2) |
|
- | |||||
| 44 | 215163900 | Roller Assy, Rear,(2) |
|
- | |||||
| 47 | 5303288974 | Channel-shelf Mtg, Side, (2) |
|
- | |||||
| 52 | 5303289294 | Tube-water Inlet |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15(a) X 1 (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 66 | 215050201 | Damper-meat Keeper |
|
- | |||||
| 71 | 215003300 | Clip-grille,(2) |
|
$ 20.00 | |||||
| 72 | 5303295757 | Grille/kickplate,white |
|
$ 233.47 | |||||
| 77 | 5303001216 | Washer-nylon,3/16 X 5/8 Od |
|
- | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 80 | 218154003 | Gasket-coil Cover, Air Duct Cvr, (4) |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 85 | 215003802 | Cover-lower Hinge, White |
|
- | |||||
| 89 | 215176300 | Cover-machine Compt |
|
- | |||||
| 90 | 215022602 | Seal-foam |
|
- | |||||
| 91 | 215177600 | Deflector-air, Air Duct Cover, W/seal |
|
- | |||||
| 92 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 100 | 5303288973 | Support-crisper Cvr |
|
$ 24.41 | |||||
| 101 | 215305702 | Seal-foam |
|
- | |||||
| 102 | 215134700 | Support-motor Brkt,(4) |
|
$ 18.17 | |||||
| 103 | 215413100 | Door-ice Access |
|
$ 33.70 | |||||
| 104 | 5303001211 | Support-ice Access Dr |
|
- | |||||
| 107 | 218188800 | Shield-light, Crisper |
|
$ 37.41 | |||||
| 108 | 215171800 | Cover-wiring, Crisper Light |
|
- | |||||
| *78202 | 5303321319 | Touch-up Paint-white (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| 104A | 3001212 | Screw-ice Dr Supt, Cr Spcl Pan Hd, 8-15(a) X 1-5/8 (non-illustrated) |
|
- | |||||
| 10A | 5303289494 | Cover-evap Coil, Lower |
|
- | |||||
| 15A | 218188900 | Light Bulb/lamp, Crisper Light, (2) |
|
- | |||||
| 16A | 5303299157 | Socket-light/lamp, Crisper Light |
|
$ 63.63 | |||||
| 18A | 5303289044 | Support-air Duct Cvr,1.83``long(non-illustrated) |
|
- | |||||
| 29A | 215598900 | Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt |
|
- | |||||
| 30A | 215009100 | Bracket-lower Hinge, Lh, W/hinge Pin |
|
- | |||||
| 30B | 5303289291 | Tapping Plate,rh(non-illustrated) |
|
- | |||||
| 30C | 5303289290 | Tapping Plate, Lh (non-illlustrated) |
|
- | |||||
| 43A | 5308017044 | Screw-roller Mtg,spcl Ind Hex Hd, 5/16-18(23)x7/8 (non-illustrated) |
|
$ 6.34 | |||||
| 66A | 218171301 | Cover-meat Kpr Dmpr |
|
$ 45.09 | |||||
| 71A | 215608400 | Screw-clip/grille, Pan Head, 6-ab X 1/4 C R (non-illustrated) |
|
- | |||||
| 78A | 5308009617 | Washer, Ext Tooth Lock, No. 10 (non-illustrated) |
|
- |
