Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 375976 Miscellaneous Parts Bag Appelez-nous -
1 359131 Pump Assembly Appelez-nous -
2 WP16123 Washer, Inlet Hose (1-1/16 X 5/8) (4)   (Replaces: 16123) Special Order $ 6.93

2 WP273556 Screw, 10-12 X 5/8   (Replaces: 273556) In-Stock Immediately $ 7.04

3 96175 Sleeve Appelez-nous -
4 96266 Spring, Toggle Appelez-nous -
5 22965 Strap, Ground Appelez-nous -
5 96262 Clip, Retainer Appelez-nous -
6 WP367594 Foot, Front (2)   (Replaces: 367594) In-Stock Immediately $ 18.46

7 132848 Screw, Ground (10-24 X 1) Appelez-nous -
8 WP356138 Clamp, Hose   (Replaces: 356138) In-Stock Immediately $ 7.67

9 95440 Connector, Hose Special Order $ 22.55

10 WP285655 Clamp, Hose   (Replaces: 370445) In-Stock Immediately $ 7.55

11 359630 Pulley Appelez-nous -
11 WP358594 Foot, Rear (2)   (Replaces: 358594) Special Order $ 12.24

12 355538 Lever, Valve Appelez-nous -
13 96264 Rod, Connecting Appelez-nous -
14 383750 Bearing Block Assembly Appelez-nous -
15 96265 Wick, Oil Appelez-nous -
16 386011 Screw, Pump To Gearcase (2) 5/16-18 X 7/8 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

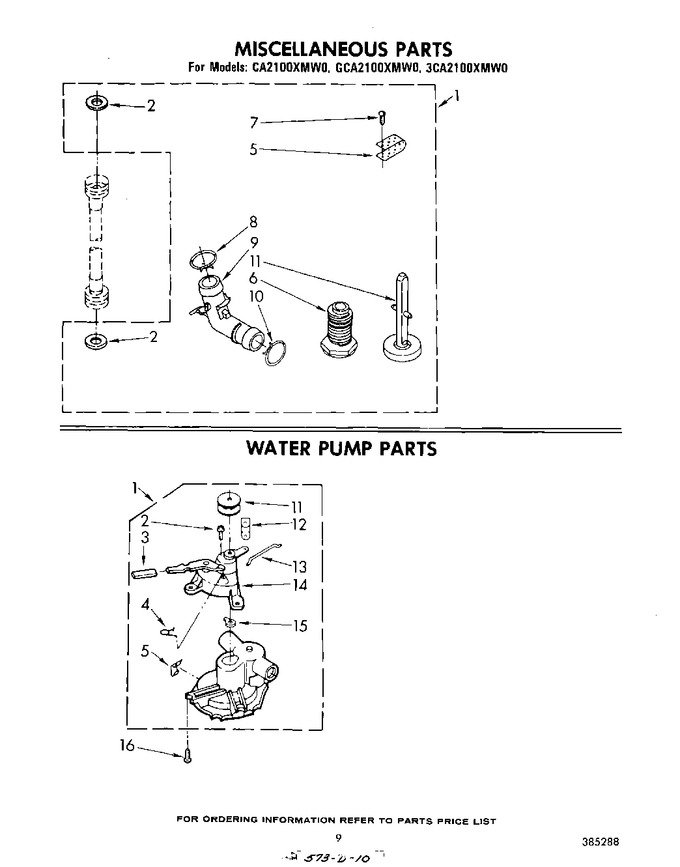

Diagram for GCA2100XMW0
