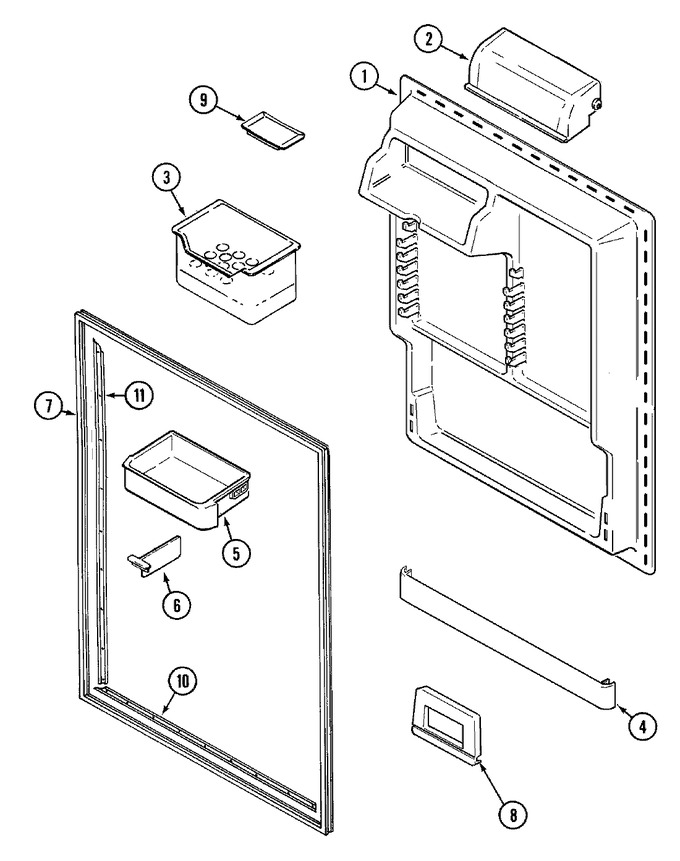

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002592		Liner, F.f. Door	10	Appelez-nous	-
1	65275-5		Screw	10	Appelez-nous	-
2	61002384		Door, Dairy	10	Appelez-nous	-
3	67215-2		Tray, Egg	10	Appelez-nous	-
4	61005136		Front, Pick-off   (Replaces: 61002594)	10			$ 118.68
5	61002595		Shelf, Pick-off	10	Appelez-nous	-
6	61002274		Organizer, Shelf	10	Appelez-nous	-
7	WP61004010		Seal, F.f. Door (wht)   (Replaces: 61002056)	10			$ 296.04
8	61002273		Retainer, Bottle	10	Appelez-nous	-
9	29936-2		Tray, Butter	10	Appelez-nous	-
10	61002597		Retainer, Seal (top/bottom)	10	Appelez-nous	-
11	61002366		Retainer, Seal (side)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
