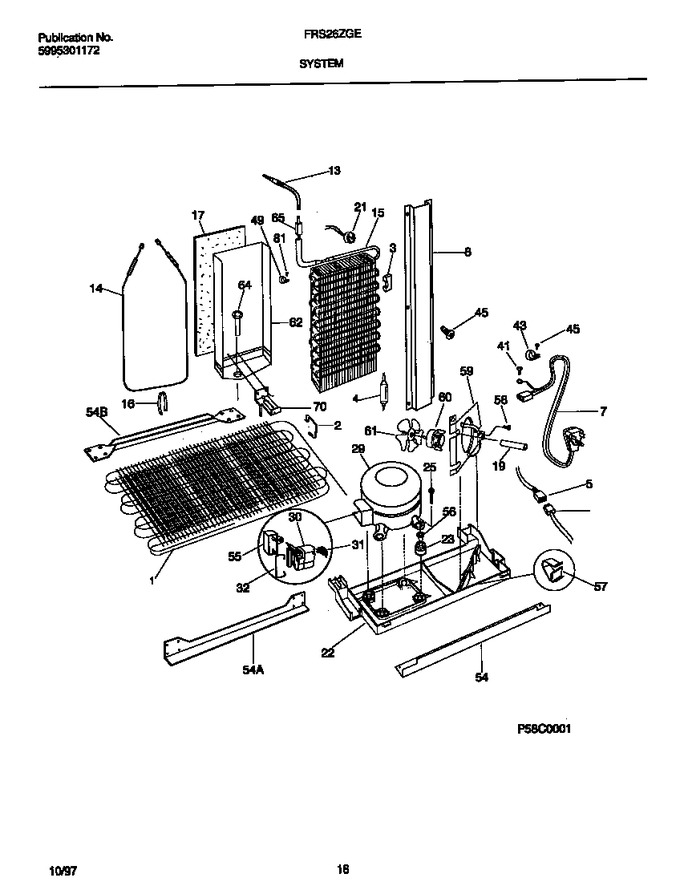

08 - System


09 - Ice & Water Dispenser


10 - Container/drive


11 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303289029		Clip-cond Mtg. (4)		Appelez-nous	-
3	218679602		Block-evap Coil, Styrofoam, (2)		Appelez-nous	-
4	5303305677		Drier-filter   (Replaces: 218541000)			Immediately	$ 31.67
6	218741400		Harness-wiring, Machine Compt		Appelez-nous	-
7	215459201		Cord-electric Power				$ 66.47
8	218803400		Cover-wiring				$ 79.11
13	215006701		Heat Exchanger, Suction Line		Appelez-nous	-
14	218169802		Heater-defrost			Immediately	$ 115.10
16	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
17	5303289496		Insulator-evap				$ 2.63
19	218631200		Tube, Rubber		Appelez-nous	-
21	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
22	218811100		Base-compressor Mtg, (drain Pan)		Appelez-nous	-
23	218513300		Grommet-compr Mtg				$ 42.53
25	218773500		Screw-compressor Mtg, Hex Washer Head, 10b X 1 1/4		Appelez-nous	-
29	218374511		Compressor, R134a, Rh110-``r``, W/o Electricals		Appelez-nous	-
30	216008902		Starter-ptc		Appelez-nous	-
31	5303308603		Overload Protector				$ 117.08
32	215012000		Wire-bale				$ 2.63
41	5308000039		Screw		Appelez-nous	-
49	215506900		Bracket-evap Mtg		Appelez-nous	-
54	5303289027		Rail-cabinet Base,rear		Appelez-nous	-
54	5303289292		Rail-cabinet Base, Front		Appelez-nous	-
54	5303289311		Rail-compr Support		Appelez-nous	-
55	218764602		Capacitor-run				$ 89.31
56	218769300		Insert-compressor Mtg		Appelez-nous	-
57	218247300		Clip-wiring Harness		Appelez-nous	-
58	215004600		Screw,cond Fan Mtr, Hx Serr Wshr Hd, 8-36 X 7/16, (2)		Appelez-nous	-
59	5303289031		Shroud-cond Fan Mtr		Appelez-nous	-
60	215501901		Motor-condenser Fan				$ 202.70
62	215048701		Trough-drain, W/shield Assy, & 17 Insulator		Appelez-nous	-
64	5303289063		Tube-drain		Appelez-nous	-
65	5303289301		Spacer-tube				$ 35.39
70	5303289041		Bracket-evap/cvr Mtg		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*80694	5303917166		Hot Tube Repair Kit, Service		Appelez-nous	-
15A	218691301		Evaporator, R134a System				$ 463.21
15B	3206414		Tube-inlet (not Illustrated)				$ 31.61
1A	218787900		Condenser				$ 122.95
1B	5303289026		Spacer, Tube (not Illustrated)		Appelez-nous	-
43A	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
43B	5303001199		Clamp				$ 65.92
43C	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
45A	218754500		Screw,hex Hd Ser Wshr ,8-18 X 3/8 ,wiring Cover,drain Tube		Appelez-nous	-
45B	5304455852		Screw, Hex Washer Head, 8-15a X 1 (not Illustrated)   (Replaces: 5303207328)				$ 12.76
45C	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
45D	5300141713		Screw, Hex Washer Head, 8-32 X .625, Special (not Illustrated)		Appelez-nous	-
45E	218769200		Screw, Hx Wshr Hd Spec, 6-32 X .5 (not Illustrated)		Appelez-nous	-
5A	218646100		Harness-wiring, Main		Appelez-nous	-
5B	215004900		Harness-wiring, Frzr Controls (not Illustrated)		Appelez-nous	-
5C	215005200		Harness-wiring, Refr Controls (not Illustrated)		Appelez-nous	-
5D	218463600		Harness-wiring, Crisper Lights (not Illustrated)		Appelez-nous	-
5E	218646000		Harness-wiring, Filter Heater (not Illustrated)		Appelez-nous	-
61A	5303289032		Blade-cond Fan		Appelez-nous	-
61B	215004700		Nut, Speed (not Illustrated)				$ 3.78
61C	215004800		Grommet-silencer (not Illustrated)				$ 52.50
