02 - Tub And Basket


03 - Water Pump


04 - Top, Lid And Control Box


05 - Drive


06 - Console


07 - Cabinet


08 - Miscellaneous , Literature And Optional


09 - Wiring Harness


10 - Gearcase


11 - Basket Drive And Brake

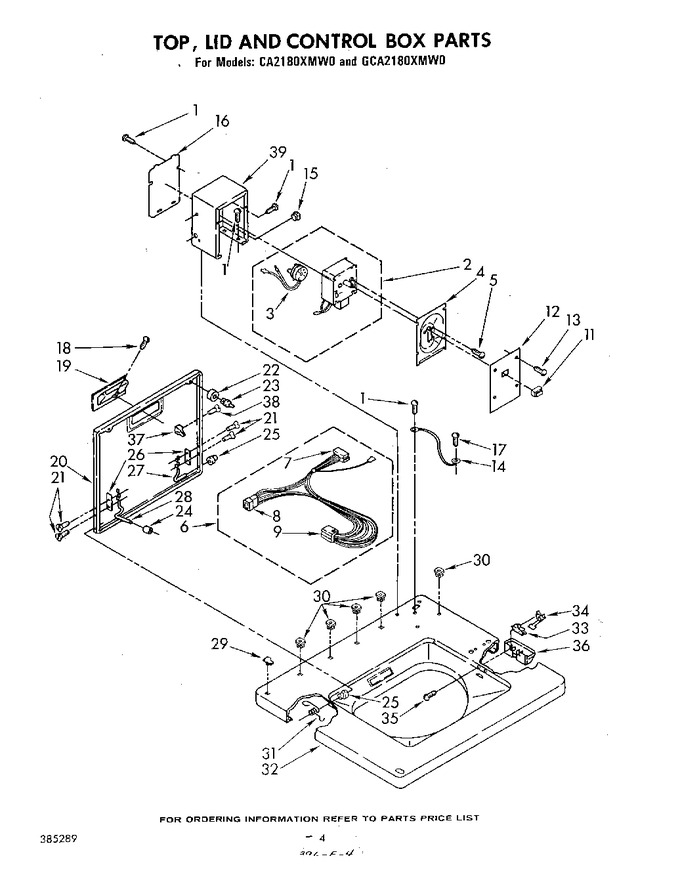

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
2	385827		Timer, 60 Hz.		Appelez-nous	-
3	386008		Motor, Timer (60 Hz.)		Appelez-nous	-
4	386272		Plate, Timer Mounting		Appelez-nous	-
5	WP356418		Screw, Timer Mounting (2)   (Replaces: 96435)				$ 7.13
6	386612		Harness, Timer		Appelez-nous	-
7	W10876590		Block, Timer Disconnect   (Replaces: 352089)				$ 11.48
8	94697		Cap, Terminal 12 Way (uses Terminal 94613		Appelez-nous	-
9	355410		Plug, Terminal (9 Way)		Appelez-nous	-
11	386276		Pushbutton		Appelez-nous	-
12	386273		Cover, Control Box		Appelez-nous	-
13	WP965173		Screw, 8 X 3/8 (cover To Box)   (Replaces: 345304)			Immediately	$ 9.65
14	690853		Wire, Ground		Appelez-nous	-
15	352481		Bushing, Snap		Appelez-nous	-
16	94216		Panel, Control Box Rear		Appelez-nous	-
17	90057		Screw, Ground Wire To Top		Appelez-nous	-
18	359243		Screw, Lid Handle		Appelez-nous	-
19	379884		Handle, Lid (white)		Appelez-nous	-
20	382792		Lid (white)		Appelez-nous	-
21	WPW10119828		Screw And Washer (4)   (Replaces: 355274)			Immediately	$ 6.47
22	356908		Bumper, Lid				$ 8.35
23	WP356907		Rivet, Plastic   (Replaces: 356907)				$ 6.66
24	19119		Bumper, Lid Hinge				$ 5.75
25	WP21258		Bearing, Hinge   (Replaces: 21258)			Immediately	$ 6.87
26	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
27	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 24.71
28	91099		Hinge, Lid (l.h.)		Appelez-nous	-
29	353878		Nut, Push-in		Appelez-nous	-
30	98219		Nut, Push-in (8)		Appelez-nous	-
31	DE81-05611A		Spring, Lid (l.h.)   (Replaces: 92398)				$ 150.30
32	386373		Top (white)		Appelez-nous	-
33	W10820036		Switch, Lid (364090) (alt.) (364091) (alt.) (367034) (alt.)   (Replaces: 660308)			Immediately	$ 27.45
34	370959		Actuator, Lid Switch				$ 33.01
35	354764		Screw And Washer (2)		Appelez-nous	-
36	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
37	357633		Strike, Lid Switch		Appelez-nous	-
38	354975		Screw And Washer		Appelez-nous	-
39	386366		Box, Control (white)		Appelez-nous	-
