SELECT A DIAGRAM

01 - Compressor


02 - Controls


03 - Freezer Compartment


04 - Freezer Inner Door


05 - Freezer Outer Door


06 - Fresh Food Inner Door


07 - Fresh Food Outer Door


08 - Shelves & Accessories


09 - Wiring Information

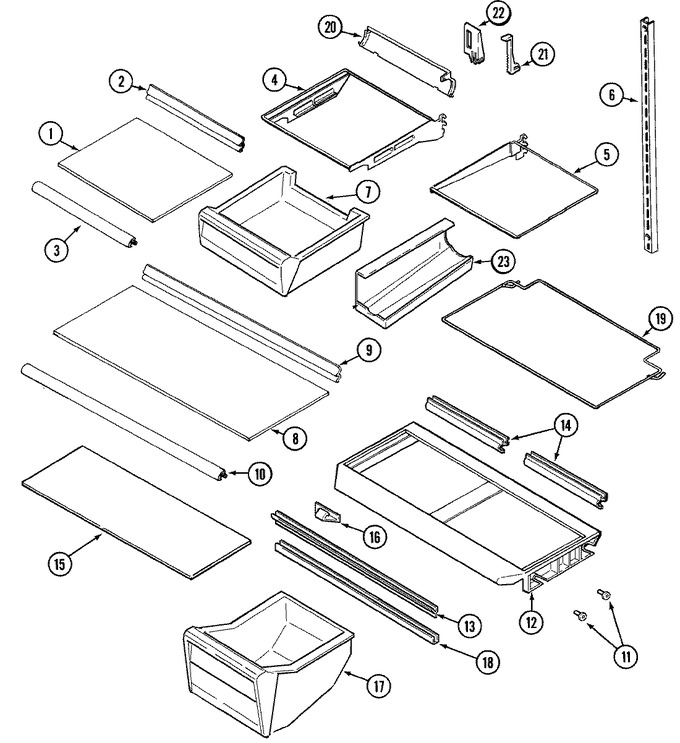

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002520		Glass, Split/meat Shelf	11	Appelez-nous	-
2	61002521		Trim, Meat/split Shelf (rear)	11	Appelez-nous	-
3	61002522		Trim, Meat/split Shelf (frt)	11	Appelez-nous	-
4	61002523		Frame, Meat Shelf	11	Appelez-nous	-
5	61002558		Frame, Split Shelf	11	Appelez-nous	-
6	61002254		Rail, Shelf Support (lt/rt)	11	Appelez-nous	-
6	WP489478		Screw   (Replaces: 400017-1)	11			$ 6.98
6	61002253		Rail, Cant. Shelf	11	Appelez-nous	-
6	400037-28		Screw	11	Appelez-nous	-
7	61003101		Pan, Meat	11	Appelez-nous	-
8	61002526		Glass, Full Shelf	11	Appelez-nous	-
9	61002527		Trim, Full Shelf (rear)	11	Appelez-nous	-
10	61002528		Trim, Full Shelf (frt)	11	Appelez-nous	-
11	WP489478		Screw   (Replaces: 400017-1)	11			$ 6.98
11	67764-1		Support, Crisper Shelf	11			$ 8.05
12	61002728		Shelf, Crisper	11	Appelez-nous	-
13	61002530		Seal, Crisper Shelf (frt)	11	Appelez-nous	-
14	61003416		Seal, Crisper Shelf (rear)	11	Appelez-nous	-
15	61002532		Glass, Crisper Shelf	11			$ 85.72
16	61002187		Control, Humidity	11	Appelez-nous	-
17	61003100		Pan, Crisper	11	Appelez-nous	-
18	61002535		Support, Crisper Pan	11	Appelez-nous	-
19	61002533		Frame, Full Shelf	11	Appelez-nous	-
20	61002564		Sc0op, Meat Pan	11	Appelez-nous	-
21	61002563		Slide, Control (meat)	11	Appelez-nous	-
22	61002562		Control, Meat Pan	11	Appelez-nous	-
23	61002657		Holder, Beverage	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
