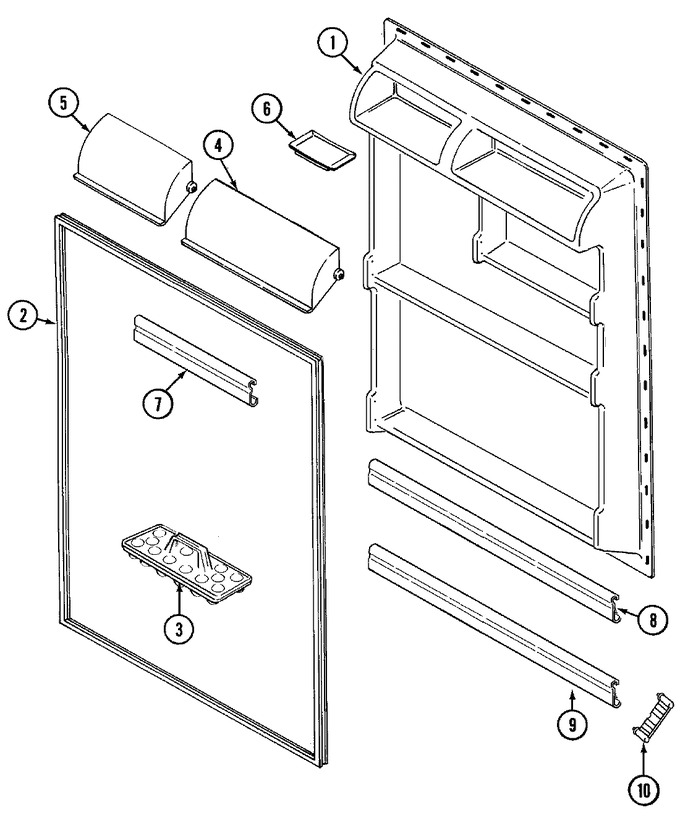

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69453-1		Liner, F.f. Door	11	Appelez-nous	-
1	65275-5		Screw	11	Appelez-nous	-
2	70025-6		Gasket, F.f. Door (wht)	11			$ 155.30
3	60066-1		Tray, Egg	11	Appelez-nous	-
4	69058-30		Door, Dairy (large)	11	Appelez-nous	-
5	69058-29		Door, Dairy	11	Appelez-nous	-
6	29936-2		Tray, Butter	11	Appelez-nous	-
7	WP70111-108		Trim, Shelf (14 3/16``)   (Replaces: 70111-38)	11		Immediately	$ 104.35
8	WP70111-108		Trim, Shelf (24 3/8``)   (Replaces: 70111-47)	11		Immediately	$ 104.35
9	WP70111-108		Trim, Shelf (24 7/8``)   (Replaces: 70111-50)	11		Immediately	$ 104.35
10	70197-1		Retainer, Shelf Trim	11		Immediately	$ 14.18
