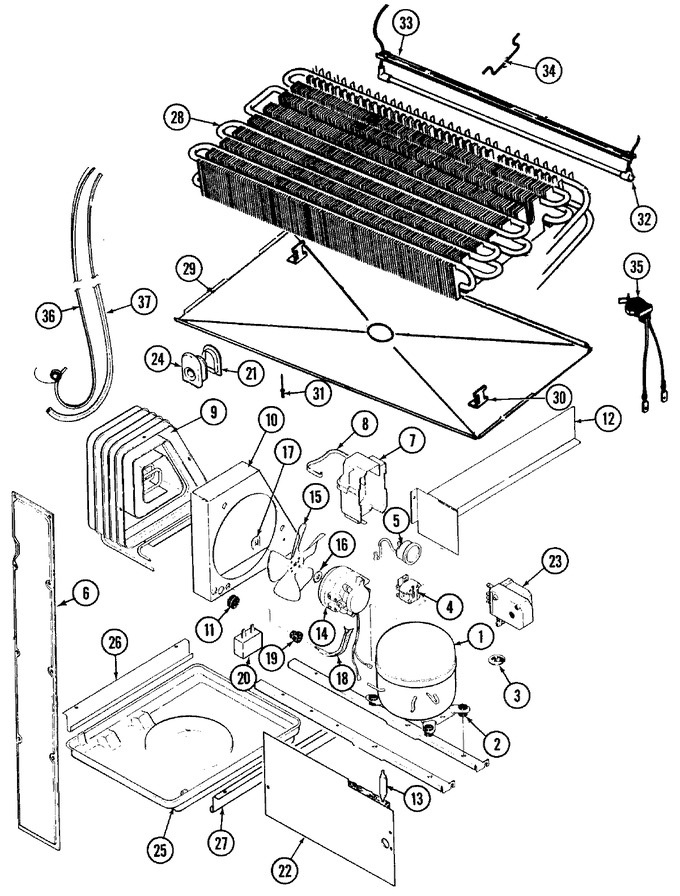

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA1029 | Compressor Kit | 10 |
|
- | ||||
| 2 | 17245-4 | Grommet, Compressor | 10 |
|
- | ||||
| 3 | 52778-2 | Clip | 10 |
|
- | ||||
| 3 | WP681414 | Screw, Compressor Rail (Replaces: 414011-1) | 10 |
|
Immediately | $ 7.07 | |||
| 4 | 68857-4 | Relay, Start | 10 |
|
- | ||||
| 5 | 69105-1 | Overload | 10 |
|
- | ||||
| 6 | 60110-2 | Cover, Wire Harness | 10 |
|
- | ||||
| 7 | 69754-1 | Cover, Terminal | 10 |
|
- | ||||
| 8 | 59596-1 | Clip, Terminal Cover | 10 |
|
- | ||||
| 9 | 60434-3 | Condenser | 10 |
|
- | ||||
| 9 | 60408-2 | U-nut, Condenser | 10 |
|
- | ||||
| 10 | 66228-1 | Shroud, Condenser | 10 |
|
- | ||||
| 11 | 53351-1 | Grommet, Condenser Tubing | 10 |
|
- | ||||
| 11 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 12 | 66493-1 | Baffle, Air Divider | 10 |
|
- | ||||
| 13 | WPW10143759 | Drier (Replaces: 13900) | 10 |
|
Immediately | $ 27.70 | |||
| 14 | 68445-8 | Motor, Condenser Fan | 10 |
|
- | ||||
| 14 | 408015-1 | Screw | 10 |
|
- | ||||
| 15 | WP12587601 | Blade, Condenser Fan (Replaces: 69958-1) | 10 |
|
$ 114.00 | ||||
| 16 | 19913-4 | Washer | 10 |
|
- | ||||
| 17 | 19914-1 | Speednut | 10 |
|
- | ||||
| 18 | 69181-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 19 | 56933-1 | Grommet, Bracket | 10 |
|
- | ||||
| 20 | W10124350 | Not Required Part Or See Note | 10 |
|
- | ||||
| 21 | 60069-1 | Retainer, Entry Grommet | 10 |
|
- | ||||
| 22 | 66338-4 | Cover, Unit Compartment | 10 |
|
- | ||||
| 22 | WP488729 | Screw (Replaces: 9986-45) | 10 |
|
Immediately | $ 7.01 | |||
| 23 | 66128-5 | Timer, Defrost | 10 |
|
- | ||||
| 23 | 405007-1 | Screw | 10 |
|
- | ||||
| 24 | 60068-1 | Grommet, Tube Entry | 10 |
|
- | ||||
| 25 | 68236-1 | Pan, Drain | 10 |
|
$ 89.75 | ||||
| 26 | 60555-1 | Rail, Drain Pan (rt) | 10 |
|
- | ||||
| 27 | 60555-2 | Rail, Drain Pan (lt) | 10 |
|
- | ||||
| 27 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 28 | 69822-7 | Evaporator | 10 |
|
- | ||||
| 29 | 69118-2 | Tray, Evaporator | 10 |
|
- | ||||
| 30 | 60108-2 | Bracket, Evaporator | 10 |
|
- | ||||
| 31 | WP210720 | Rivet (Replaces: 26397-9) | 10 |
|
$ 12.14 | ||||
| 32 | 60106-44 | Heater, Defrost | 10 |
|
- | ||||
| 33 | 60109-5 | Shield, Defrost Heater | 10 |
|
- | ||||
| 34 | 68935-1 | Clip | 10 |
|
- | ||||
| 35 | WP52085-28 | Thermostat, Defrost (Replaces: 52085-33) | 10 |
|
$ 107.65 | ||||
| 36 | 65013-22 | Heat Exchanger | 10 |
|
- | ||||
| 37 | 65398-1 | Cover, Heat Exchanger | 10 |
|
- | ||||
| 37 | WP2205813 | Wire Tie (Replaces: 66223-1) | 10 |
|
$ 6.95 | ||||
| 38 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 38 | 60177-4 | Retainer, Wire Harness | 10 |
|
- | ||||
| 38 | 69968-4 | Wire Harness Main | 10 |
|
- | ||||
| 39 | 108568-2 | Manual, Use & Care | 10 |
|
- |
