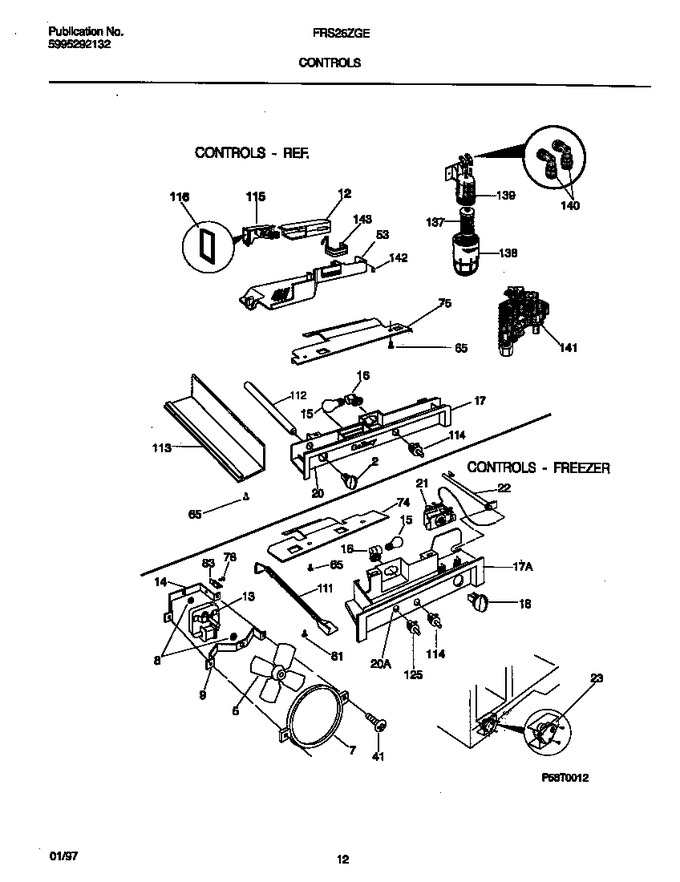

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303307883		Knob-damper Control, White/teal Line		Appelez-nous	-
5	5308000010		Fan Blade, Red			Immediately	$ 49.03
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
12	215809600		Diffuser-air		Appelez-nous	-
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	241559801		Socket-light/lamp   (Replaces: 5303289050)				$ 72.68
17	218468701		Control Box, Refr, W/light Tunnel		Appelez-nous	-
17	5303296581		Control Box, Frzr				$ 64.25
18	5303307882		Knob-temp Control		Appelez-nous	-
20	5303307884		Label-control Box, Refr		Appelez-nous	-
20	5303307888		Label-control Box, Frzr		Appelez-nous	-
21	5303300027		Control-temperature				$ 117.11
22	5303319683		Housing-temp Sensor, Plastic				$ 27.93
53	215809506		Box-damper Control		Appelez-nous	-
65	5303001361		Pin-mounting, Push-in, Plastic		Appelez-nous	-
74	218465000		Shield-light, Frzr		Appelez-nous	-
75	218465100		Shield-light, Refr				$ 18.19
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
111	5303297842		Wireway,frzr		Appelez-nous	-
112	215277102		Rod-damper Extn		Appelez-nous	-
113	5303296580		Cover - Dmpr Rod Ext		Appelez-nous	-
114	5303289051		Switch-light/lamp,white				$ 26.23
115	215011502		Damper Assy, W/seal				$ 303.35
116	215011400		Seal-damper, Foam		Appelez-nous	-
125	215334201		Switch-auger Kill,white				$ 31.87
137	215334201		Switch-auger Kill,white				$ 31.87
138	218657401		Cup-water Filter		Appelez-nous	-
139	218657500		Housing-water Filtr		Appelez-nous	-
140	218518700		Elbow-water Tube				$ 61.22
141	218658000		Valve-water Filter, Dual Solenoid, 115v, W/nut				$ 77.36
142	218657701		Knob-indicator, Filter Replment		Appelez-nous	-
143	218696700		Heater-water Filter				$ 46.51
*11534	215188300		Screw-control Box Mtg, Hex Head, 8-15a X 1.000, Refr/frz		Appelez-nous	-
*11535	215290100		Screw-solenoid Valve,hx Hd-slot Wshr ,12-24 X 3/4				$ 6.35
*11536	218646000		Harness-wiring, Filter Heater		Appelez-nous	-
*11537	218710300		Wrench-filter				$ 4.54
*11538	3205266		Edge Protector, Wiring Harness				$ 80.09
13A	218394100		Motor-evap Fan		Appelez-nous	-
13B	215474201		Washer, ``slinger``, Nylon, Evap Fan Shaft (not Illustrated)			Immediately	$ 18.43
23A	215846602		Timer-defrost   (Replaces: 5303321133)			Immediately	$ 28.20
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23C	215277000		Cover, Defrost Timer, Top (not Illustrated)		Appelez-nous	-
23D	5303289058		Shield, Defrost Timr, Btm (not Illustrated)		Appelez-nous	-
41A	5308000039		Screw		Appelez-nous	-
41B	5303209814		Nut, ``u`` Type, 8-15(a), Fan Motor Mount (not Illustrated		Appelez-nous	-
