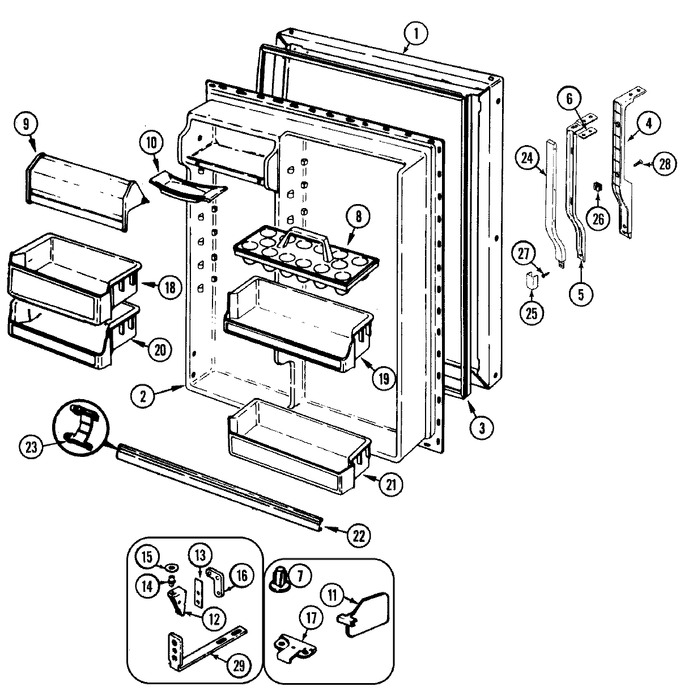

GT21A93V | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	72342-1-WW	Panel, F.f. Door (wht)	10	Appelez-nous	-
2	69456-1	Liner	10	Appelez-nous	-
2	65275-5	Screw	10	Appelez-nous	-
3	70025-6	Gasket, F.f. Door (wht)	10			$ 155.30
4	70051-1	Handle, F.f. Door	10	Appelez-nous	-
5	70052-1	Frame, Handle	10	Appelez-nous	-
6	67934-1	Shim, Handle	10	Appelez-nous	-
7	55782-10	Plug Button, Hdle & Door Stop	10	Appelez-nous	-
8	60066-1	Tray, Egg	10	Appelez-nous	-
9	69058-29	Door, Dairy	10	Appelez-nous	-
10	29936-2	Tray, Butter	10	Appelez-nous	-
11	69759-2	Organizer	10	Appelez-nous	-
12	69516-2	Hinge, Lower (blk)	10	Appelez-nous	-
12	65275-51	Screw, Lower Hinge	10	Appelez-nous	-
13	69510-1	Shim, Lower Hinge	10	Appelez-nous	-
14	69845-1	Pin, Lower Hinge	10			$ 44.55
15	67483-3	Washer, Lower Hinge (Replaces: 67483-2)	10		Immediately	$ 45.86
15	65275-59	Screw	10	Appelez-nous	-
15	69511-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
16	67874-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
17	65275-48	Screw	10	Appelez-nous	-
17	69256-2	Stop, Door	10	Appelez-nous	-
18	69872-44	Shelf, Pick-off (high/narrow)	10	Appelez-nous	-
19	69872-45	Shelf, Pick-off (low/wide)	10	Appelez-nous	-
20	69872-46	Shelf, Pick-off (low/narrow)	10	Appelez-nous	-
21	69872-47	Shelf, Pick-off (high/wide)	10	Appelez-nous	-
21	70112-1	Retainer, Bottle	10	Appelez-nous	-
22	WP70111-108	Trim, Shelf (24 7/8``) (Replaces: 70111-50)	10		Immediately	$ 104.35
23	70197-1	Retainer, Shelf Trim	10		Immediately	$ 14.18
24	70053-18	Insert, Handle (wht)	10	Appelez-nous	-
25	70058-2	End Cap, Handle (wht)	10	Appelez-nous	-
26	69743-1	Grommet	10	Appelez-nous	-
27	W10856122	Screw (Replaces: 65275-80)	10			$ 6.98
28	415033-1	Screw	10	Appelez-nous	-
29	69511-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
