01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Shelves & Accessories


08 - Unit Compartment & System


09 - Wiring Information

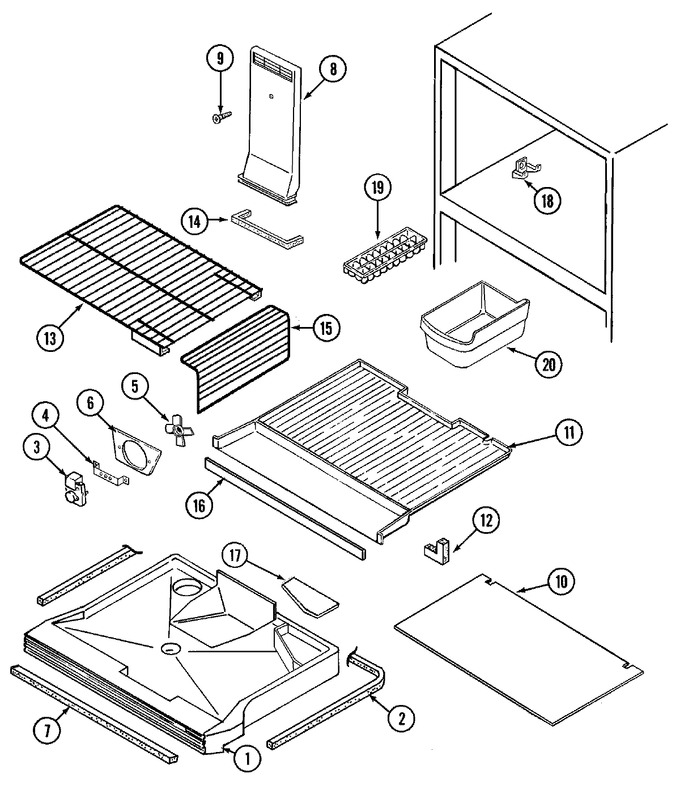

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68946-7		Seal	13	Appelez-nous	-
1	61001473		Tray, Styrofoam Mullion	13	Appelez-nous	-
2	69414-3		Seal, Mullion Tray	13	Appelez-nous	-
3	406062-1		Screw	13	Appelez-nous	-
3	69106-3		Motor, Evaporator Fan	13	Appelez-nous	-
4	64856-1		Bracket, Fan Motor	13	Appelez-nous	-
4	W11233072		Screw   (Replaces: 400015-36)	13		Immediately	$ 12.62
5	69107-1		Blade, Evaporator Fan	13	Appelez-nous	-
6	60608-2		Orifice, Fan Blade	13	Appelez-nous	-
7	61001780		Seal, Mullion Tray (frt.)	13	Appelez-nous	-
8	70208-3		Tunnel, Air	13	Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)	13		Immediately	$ 12.62
10	66403-2		Cover, Evaporator	13	Appelez-nous	-
11	69398-1		Bottom, Frz.	13	Appelez-nous	-
11	12001055		Kit, Anti Sweat	13	Appelez-nous	-
12	69563-1		Seal, Frost Chest Bottom	13	Appelez-nous	-
13	70322-2		Shelf, Frz.	13	Appelez-nous	-
14	66325-37		Seal, Air Tunnel	13	Appelez-nous	-
15	70323-2		Leg, Shelf	13	Appelez-nous	-
16	69413-2		Magnet	13	Appelez-nous	-
17	61664805		Cover, Plenum	13	Appelez-nous	-
18	400019-1		Screw	13	Appelez-nous	-
18	66101-1		Stud, Shelf	13	Appelez-nous	-
19	WP841180A		Tray, Ice   (Replaces: 59281-2)	13		Immediately	$ 41.00
20	WP67001255		Pan, Ice   (Replaces: 68346-1)	13			$ 182.77
