01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelf


06 - Control


07 - System


08 - Ice Dispenser


09 - Ice Container

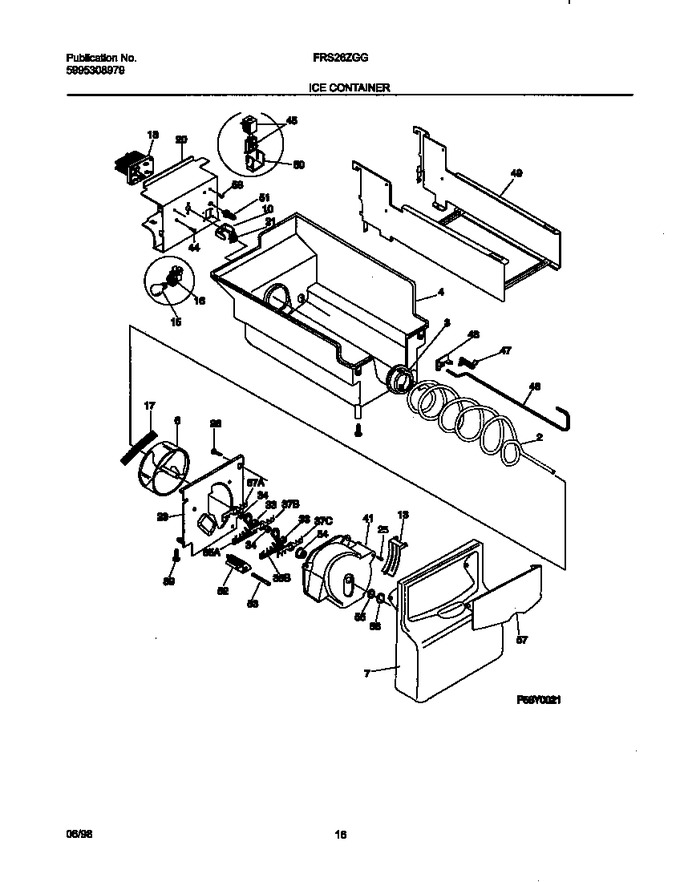

10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241716101		Auger-ice   (Replaces: 5304404344)				$ 117.32
3	241685201		Cam-drive   (Replaces: 5304404343)				$ 41.81
4	241734001		Container-ice   (Replaces: 218815300)				$ 105.61
6	241685101		Drum-ice Disp   (Replaces: 5304404346)				$ 51.74
7	241734201		Front-ice Container   (Replaces: 218815400)				$ 87.04
10	241726501		Bar-drive   (Replaces: 5304404337)				$ 58.82
13	3206322		Thermostat Assy,ice Maker				$ 130.41
13	241885001		Gate   (Replaces: 5304404359)				$ 75.83
14	3206323		Screw-switch Mtg, 4-24 X 3/4,		Appelez-nous	-
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
15	5304456667		Switch,(3)   (Replaces: 3206324)				$ 92.53
16	3206326		Support		Appelez-nous	-
16	241559801		Socket-light/lamp   (Replaces: 5303289050)				$ 72.68
17	241684503		Drive Blade   (Replaces: 5304404345)				$ 17.44
17	241798231		Mold-ice Maker, With Heater, Radius Cube   (Replaces: 5303320545)			Immediately	$ 200.97
18	5304462594		Motor-auger   (Replaces: 5304404330)				$ 314.22
18	3206328		Ejector		Appelez-nous	-
19	3206330		Bearing & Inlet		Appelez-nous	-
20	5304404332		Cover-motor		Appelez-nous	-
20	3206331		Screw, 8-18 X 3/8, (2)		Appelez-nous	-
21	241726501		Nut-drive   (Replaces: 215285100)				$ 58.82
21	3206332		Ice Stripper		Appelez-nous	-
22	3206333		Arm, Shut-off		Appelez-nous	-
23	241684001		Plate-front   (Replaces: 5304404347)				$ 149.54
23	3206334		Screw - Sup / Mold Body, 8-18 X 1, (4)		Appelez-nous	-
24	5304456675		Lever-arm   (Replaces: 3206335)				$ 66.63
25	3206336		Screw-arm Levr/sprt, 8-18 X 9/16		Appelez-nous	-
25	240555002		Screw   (Replaces: 5304404362)			Immediately	$ 13.46
26	215503203		Screw,cr Pan Hd ,10-16 X 1/2 ,   (Replaces: 215503200)			Immediately	$ 7.09
26	3206337		Screw-thermo/sprt, 4-24 X 3/8, (4)		Appelez-nous	-
27	3206338		Screw-sw&spcr/plate,4-40 X 1		Appelez-nous	-
28	3206339		Screw-timing Stop, 4-40 X 3/8		Appelez-nous	-
29	3206340		Screw-mtr&sw/plate,4-40 X 3/4		Appelez-nous	-
30	3206341		Screw-timing, 8-32 X 1		Appelez-nous	-
31	3206342		Insulator		Appelez-nous	-
32	3206343		Plate-valve Switch		Appelez-nous	-
33	3206344		Spring		Appelez-nous	-
33	241684802		Spacer   (Replaces: 5304404351)				$ 9.10
34	5304404349		Spacer		Appelez-nous	-
141	218859701		Valve-water Filter,dual Solenoid ,115v ,			Immediately	$ 93.29
*98734	5304404335		Harness-wiring,auger Motor				$ 100.28
*98735	5304404364		Screw-bracket				$ 15.59
*98736	215781700		Clip-tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
