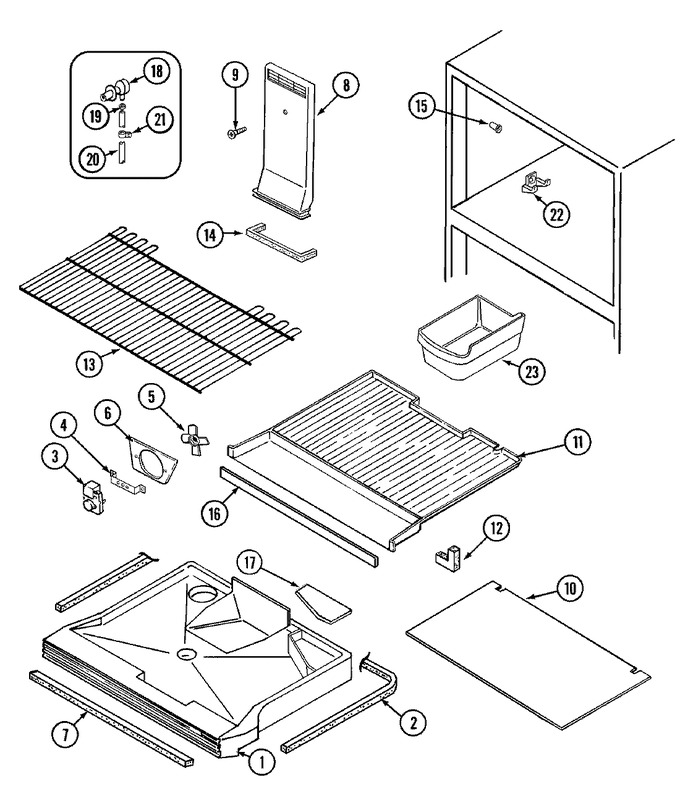

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69404-1		Tray, Styrofoam Mullion	11	Appelez-nous	-
2	69414-3		Seal, Mullion Tray	11	Appelez-nous	-
3	69106-2		Motor, Evaporator Fan	11			$ 95.45
3	406062-1		Screw	11	Appelez-nous	-
4	W11233072		Screw   (Replaces: 400015-36)	11		Immediately	$ 12.62
4	64856-1		Bracket, Fan Motor	11	Appelez-nous	-
5	69107-1		Blade, Evaporator Fan	11	Appelez-nous	-
6	60608-2		Orifice, Fan Blade	11	Appelez-nous	-
7	69562-2		Seal, Mullion Tray (front)	11	Appelez-nous	-
8	70208-3		Tunnel, Air	11	Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)	11		Immediately	$ 12.62
10	66403-2		Cover, Evaporator	11	Appelez-nous	-
11	69398-1		Bottom, Frz.	11	Appelez-nous	-
12	69563-1		Seal, Frost Chest Bottom	11	Appelez-nous	-
13	60438-33		Shelf	11	Appelez-nous	-
14	66325-37		Seal, Air Tunnel	11	Appelez-nous	-
15	60313-1		Cup, Shelf	11	Appelez-nous	-
16	69413-2		Magnet	11	Appelez-nous	-
17	61664805		Cover, Plenum	11	Appelez-nous	-
18	68307-1		Grommet, Water Entry	11	Appelez-nous	-
19	WP488878		Clamp, Water Line   (Replaces: 61001161)	11			$ 10.44
20	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-7)	11			$ 11.19
21	WP489069		Screw   (Replaces: 65275-50)	11		Immediately	$ 7.07
21	W10833902		Clamp, Tubing   (Replaces: 53516-8)	11			$ 9.89
22	400019-1		Screw	11	Appelez-nous	-
22	66101-1		Stud, Shelf	11	Appelez-nous	-
23	WP67001255		Pan, Ice   (Replaces: 68346-1)	11			$ 182.77
