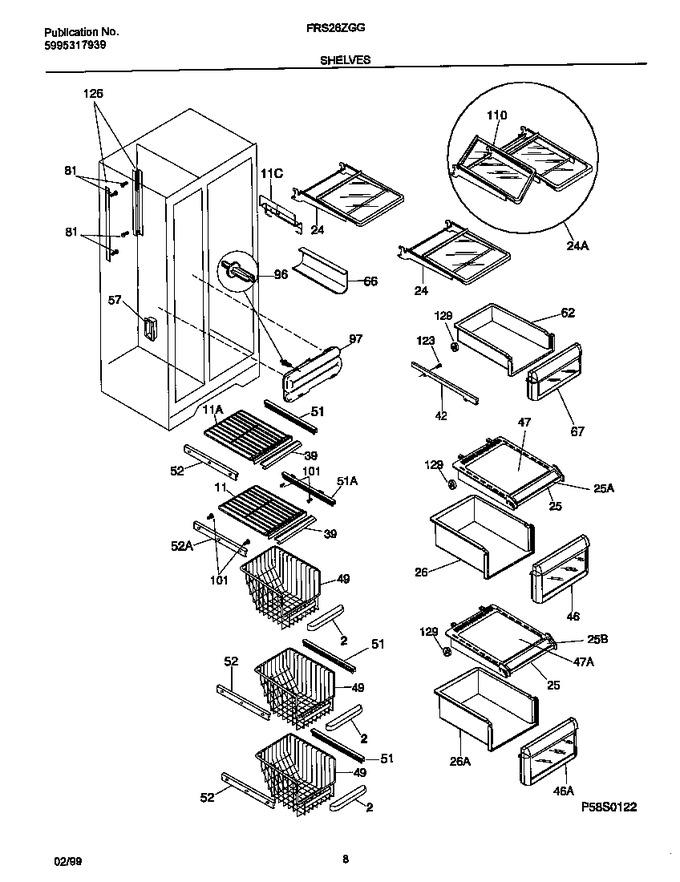

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	218383601		Handle-frzr Basket		Appelez-nous	-
11	218298003		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
11	218298004		Shelf-freezer, Sliding, Wire		Appelez-nous	-
11	218815501		Shelf-pizza,24b				$ 70.31
24	215029002		Shelf-``spill-safe``,sliding ,		Appelez-nous	-
24	218636601		Shelf-``spill-safe``,split ,flip/slide ,				$ 317.52
25	5303307878		Trim-storage Pan Cvr,upper ,		Appelez-nous	-
25	218147701		Cover-storage Pan				$ 123.56
26	5303289500		Pan-storage,upper				$ 174.74
26	5303289501		Pan-storage,lower				$ 164.85
39	215217543		Trim-frzr Shelf		Appelez-nous	-
42	215002301		Hanger-pan / Tray, Lh				$ 65.82
46	5304411659		Front-storage Pan, Upper   (Replaces: 218278201)				$ 206.96
46	5304411659		Front-storage Pan, Lower   (Replaces: 218278202)				$ 206.96
47	215723574		Insert-pan Cover,glass ,clear ,		Appelez-nous	-
47	5303289387		Insert-pan Cover,glass,clear		Appelez-nous	-
49	218384701		Basket-sliding, (3)		Appelez-nous	-
51	5303307887		Hanger-basket, Rh				$ 61.53
51	5303296575		Hanger-basket, Rh				$ 49.78
52	215162504		Hanger-basket, Lh, With Spring				$ 107.93
52	215162502		Hanger, Basket, Lh, With Spring				$ 101.35
57	5303271653		Ferrule-inner				$ 20.27
62	218285701		Tray-deli		Appelez-nous	-
66	241657701		Rack-wine   (Replaces: 5304402116)				$ 57.41
67	218278501		Front-deli Tray		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank   (Replaces: 218871301)				$ 121.63
101	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,   (Replaces: 215005000)				$ 14.18
110	218641901		Shelf-``spill-safe``, Flip-up		Appelez-nous	-
123	215005101		Screw-roller/hanger,8-10 X .438   (Replaces: 215005100)				$ 14.89
*13023	215002401		Hanger-pan/tray, Rh				$ 85.84
*13024	5303299662		Hanger-basket, Lh				$ 119.18
*13025	215328300		Clip-shelf				$ 14.02
*13026	5303001038		Washer, .28 X .62 X .19, Nylon				$ 13.34
126A	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
126B	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
129A	5303299152		Roller-hanger				$ 12.34
129B	5303299153		Bearing-roller				$ 5.09
25A	5303289586		Trim-storage Pan Cvr,lower		Appelez-nous	-
25B	5303307881		Control-humidity		Appelez-nous	-
