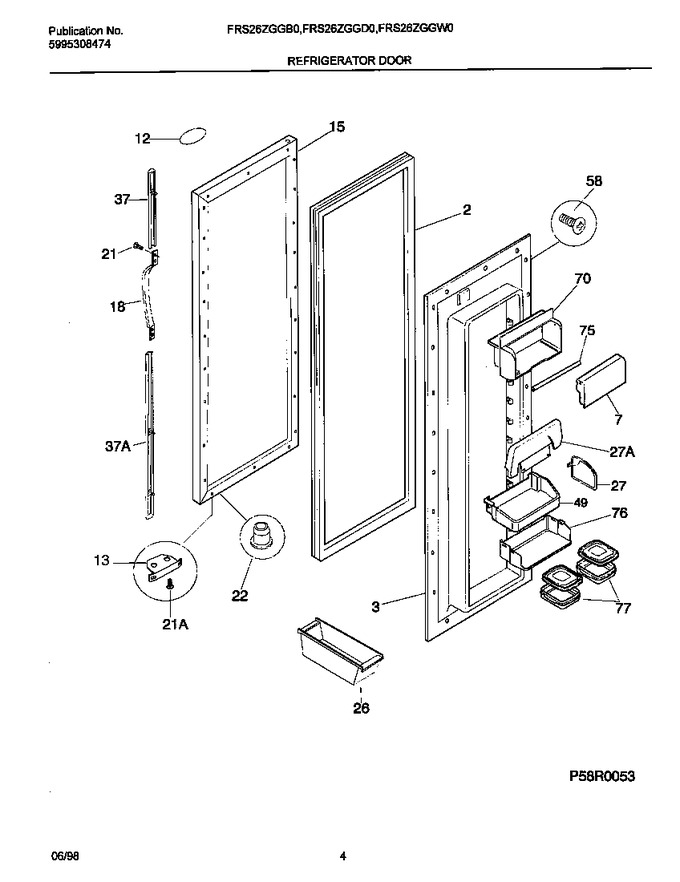

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734304		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	215434301		Panel-inner Door, Refr		Appelez-nous	-
7	218383101		Door-dairy		Appelez-nous	-
12	218364005		Frame-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917489		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
18	218025204		Handle-door, Almond, Soft Grip		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
27	218714201		Retainer, Tall Bottle				$ 42.72
37	215867062		Trim-handle,almond ,lower ,w/dec Gold Band,and Snap Lock				$ 114.03
37	215867065		Trim-handle,almond ,upper ,w/dec Gold Band,and Snap Lock		Appelez-nous	-
37	218676003		Band-decorative, Gold				$ 47.11
49	218592303		Bin-door, ``mongo``		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
70	218836302		Housing-dairy Compt				$ 203.51
75	218716300		Bumper-dairy Door		Appelez-nous	-
76	218423600		Rack-microwave Dish				$ 55.35
77	218423501		Dish-microwave, (2)				$ 4.59
*69683	215008605		Label-nameplate,almond		Appelez-nous	-
*69685	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*69686	215782300		Lock-handle Trim,snap-in				$ 34.49
*69687	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*69688	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
