SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Ice & Water Dispenser


08 - Ice Maker & Bin


09 - Shelves & Accessories


10 - Unit Compartment & System

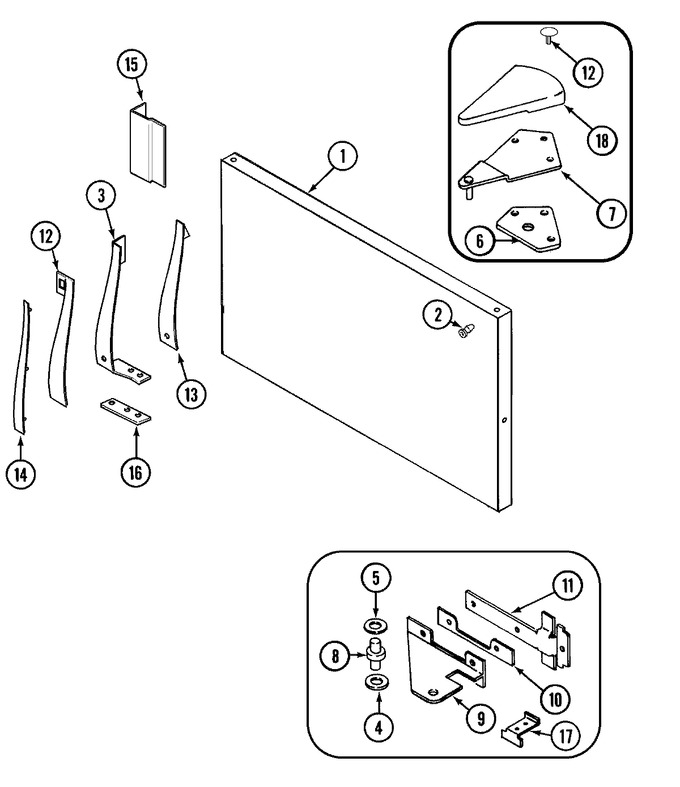

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-106-WW		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	29356-1		Retainer, Nameplate	10	Appelez-nous	-
3	65275-57		Screw	10	Appelez-nous	-
3	69300-1		Handle, Door	10	Appelez-nous	-
4	54233-1		Washer	10			$ 7.71
5	67483-6		Washer	10	Appelez-nous	-
6	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
7	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
7	53709-20		Hinge, Upper	10	Appelez-nous	-
8	67322-1		Pin, Center Hinge	10	Appelez-nous	-
9	69514-2		Hinge, Center	10	Appelez-nous	-
9	65275-55		Screw	10	Appelez-nous	-
10	69515-1		Shim, Center Hinge	10	Appelez-nous	-
11	69419-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
11	65275-61		Screw	10	Appelez-nous	-
12	68036-3		Insert (wht)	10	Appelez-nous	-
13	65275-53		Screw	10	Appelez-nous	-
13	60580-5		Insert	10	Appelez-nous	-
14	68048-7		Insert, Vinyl	10	Appelez-nous	-
15	60453-45		Trim, Frz. Door (wht)	10	Appelez-nous	-
16	69301-1		Shim, Handle	10	Appelez-nous	-
16	69835-1		Shim, Handle	10	Appelez-nous	-
17	65275-48		Screw	10	Appelez-nous	-
17	69256-2		Stop, Door	10	Appelez-nous	-
18	70121-4		Cover, Upper Hinge (wht)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
