SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Shelves & Accessories


06 - Unit Compartment & System


07 - Wiring Information

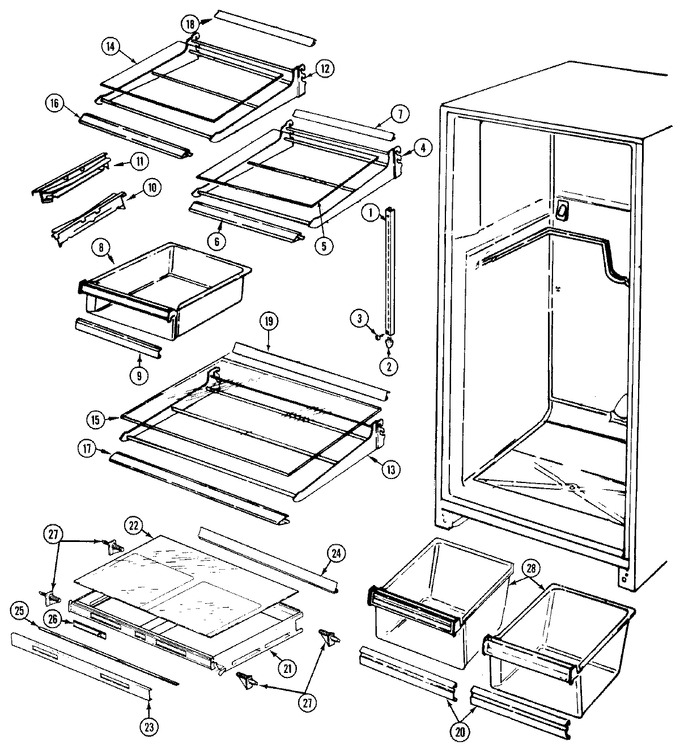

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-9		Rail, Shelf Support (center)	10	Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)	10	Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)	10	Appelez-nous	-
2	60340-1		End Cap, Center Rail	10	Appelez-nous	-
3	400037-28		Screw	10	Appelez-nous	-
4	70106-9		Frame, Split Shelf	10	Appelez-nous	-
5	68139-27		Glass, Meat Shelf	10	Appelez-nous	-
6	70108-3		Trim, Meat Shelf (front)	10	Appelez-nous	-
7	70110-3		Trim, Split Shelf (rear)	10	Appelez-nous	-
8	66636-122		Pan, Meat	10	Appelez-nous	-
9	70315-3		Trim, Meat Pan	10	Appelez-nous	-
10	66813-2		Slide Rail,meat & Deli Pan	10	Appelez-nous	-
11	66814-2		Rail, Meat Pan (rt)	10	Appelez-nous	-
12	70106-9		Frame, Split Shelf	10	Appelez-nous	-
13	70106-11		Frame, Full Shelf	10	Appelez-nous	-
14	68139-14		Glass Cantilever Shelf	10	Appelez-nous	-
15	68139-33		Glass, Full Shelf	10	Appelez-nous	-
16	70107-3		Trim, Split Shelf (front)	10	Appelez-nous	-
17	70107-8		Trim, Full Shelf (front)	10	Appelez-nous	-
18	70110-3		Trim, Split Shelf (rear)	10	Appelez-nous	-
19	70110-8		Trim, Full Shelf (rear)	10	Appelez-nous	-
20	70315-5		Trim, Crisper Pan	10	Appelez-nous	-
21	69057-3		Shelf, Crisper	10	Appelez-nous	-
22	68743-18		Glass, Crisper Shelf	10	Appelez-nous	-
23	70282-4		Trim, Crisper Shelf (frt.)	10	Appelez-nous	-
24	68798-10		Trim, Crisper Shelf (rear)	10	Appelez-nous	-
25	68797-1		Seal	10	Appelez-nous	-
26	69542-5		Slide, Control	10	Appelez-nous	-
27	68836-1		Stud, Crisper Support	10	Appelez-nous	-
28	68223-121		Pan, Crisper	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
