Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 379914 Miscellaneous Parts Bag (use W/cfa2000w6) Appelez-nous -
1 375976 Miscellaneous Parts Bag (use W/gcfa2000w6 & 3cfa2000w6) Appelez-nous -
2 WP16123 Washer, Inlet Hose (1-1/16 X 5/8) (4)   (Replaces: 16123) Special Order $ 6.93

3 285452A Screen, Filter (2)   (Replaces: 355521) In-Stock Immediately $ 8.31

5 22965 Strap, Ground Appelez-nous -
6 WP367594 Foot, Front (2)   (Replaces: 367594) In-Stock Immediately $ 18.46

7 132848 Screw, Ground (10-24 X 1) Appelez-nous -
8 WP356138 Clamp, Hose   (Replaces: 356138) In-Stock Immediately $ 7.67

9 95440 Connector, Hose Special Order $ 22.55

10 WP285655 Clamp, Hose   (Replaces: 370445) In-Stock Immediately $ 7.55

11 WP358594 Foot, Rear (2)   (Replaces: 358594) Special Order $ 12.24

12 90984 Nut Appelez-nous -
13 261891 Golden Harvest (uncut) Appelez-nous -
13 799351 Thinner (1 Gal.) Appelez-nous -
13 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

13 978883 Almond (uncut) Appelez-nous -
13 261889 New Avocado (uncut) Appelez-nous -
13 350956 Paint, Spray 13 Oz. (almond) Special Order $ 46.30

13 356674 Wedge, Cone Special Order $ 33.19

13 372065 Instructions, Installation Appelez-nous -
13 372066 Sheet, Installation Instructions (use W/3cfa2000w6) Appelez-nous -
13 356506 Sheet, Top Lock Instructions Appelez-nous -
13 385281 List, Repair Parts Appelez-nous -
13 DD81-03471A Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109) Special Order $ 54.25

13 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 124.07

13 350941 Leveler (thinner) Appelez-nous -
13 350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
13 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 34.39

13 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 16.12

13 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 11.07

13 261888 New Avocado Appelez-nous -
13 261890 Golden Harvest Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

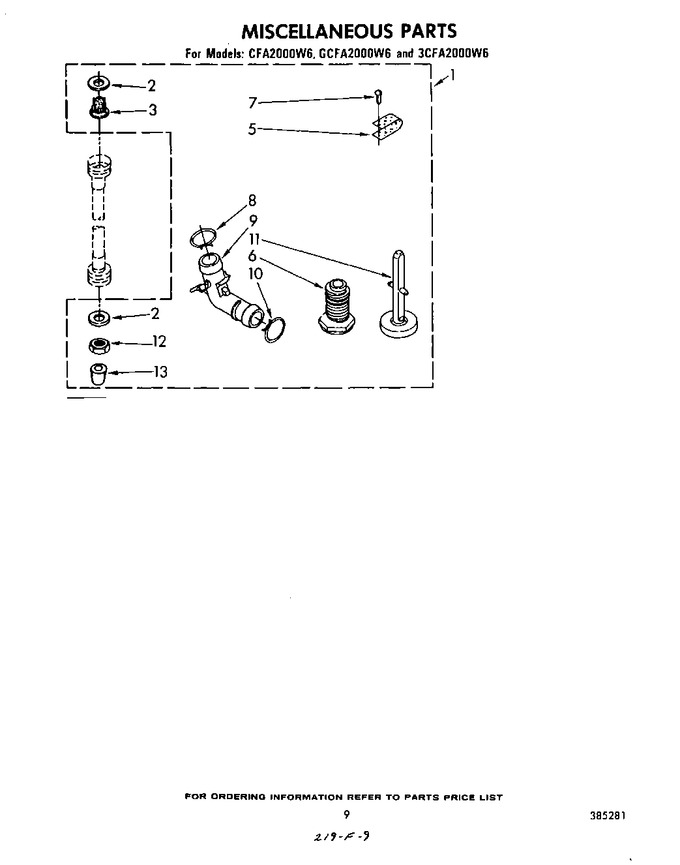

Diagram for GCFA2000W6
