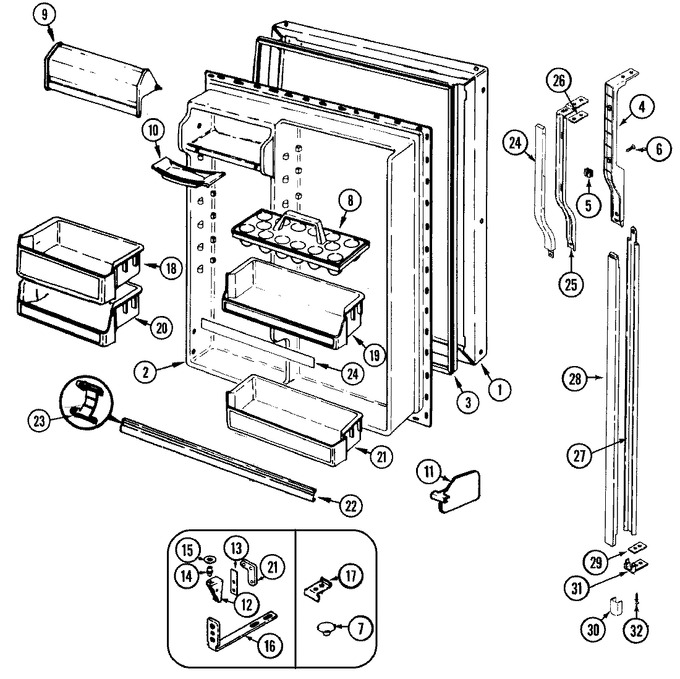

GT23A93V | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	72342-4-WW	Panel, F.f. Door (wht)	10	Appelez-nous	-
2	69460-1	Liner	10	Appelez-nous	-
2	65275-5	Screw	10	Appelez-nous	-
3	70025-8	Gasket, F.f. Door	10	Appelez-nous	-
4	70051-2	Handle, F.f. Door	10	Appelez-nous	-
4	70057-2	End Cap, Handle (wht)	10	Appelez-nous	-
4	65275-57	Screw	10	Appelez-nous	-
5	69743-1	Grommet	10	Appelez-nous	-
6	415033-1	Screw	10	Appelez-nous	-
7	67557-2	Plug Button, Air Duct & I/m	10	Appelez-nous	-
8	60066-1	Tray, Egg	10	Appelez-nous	-
9	69058-29	Door, Dairy	10	Appelez-nous	-
10	29936-2	Tray, Butter	10	Appelez-nous	-
11	69759-2	Organizer	10	Appelez-nous	-
12	65275-51	Screw, Lower Hinge	10	Appelez-nous	-
12	69516-4	Hinge, Lower (zinc)	10	Appelez-nous	-
13	69510-1	Shim, Lower Hinge	10	Appelez-nous	-
14	69845-1	Pin, Lower Hinge	10			$ 44.55
15	67483-3	Washer, Lower Hinge (Replaces: 67483-2)	10		Immediately	$ 45.86
16	65275-59	Screw	10	Appelez-nous	-
16	69511-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
17	69256-2	Stop, Door	10	Appelez-nous	-
17	65275-48	Screw	10	Appelez-nous	-
18	69872-44	Shelf, Pick-off (high/narrow)	10	Appelez-nous	-
19	69872-48	Shelf, Pick-off (low/wide)	10	Appelez-nous	-
20	69872-46	Shelf, Pick-off (low/narrow)	10	Appelez-nous	-
21	69872-49	Shelf, Pick-off (high/wide)	10	Appelez-nous	-
21	70112-1	Retainer, Bottle	10	Appelez-nous	-
22	WP70111-108	Trim, Shelf (Replaces: 70111-54)	10		Immediately	$ 104.35
23	70197-1	Retainer, Shelf Trim	10		Immediately	$ 14.18
24	70053-18	Insert, Handle (wht)	10	Appelez-nous	-
25	70052-1	Frame, Handle	10	Appelez-nous	-
26	67934-1	Shim, Handle	10	Appelez-nous	-
27	70055-2	Trim, Handle Ext.	10	Appelez-nous	-
28	70054-6	Insert, Handle Ext.	10	Appelez-nous	-
29	67934-1	Shim, Handle	10	Appelez-nous	-
30	70058-2	End Cap, Handle (wht)	10	Appelez-nous	-
31	70056-1	End Cap	10	Appelez-nous	-
32	65275-22	Screw	10	Appelez-nous	-
