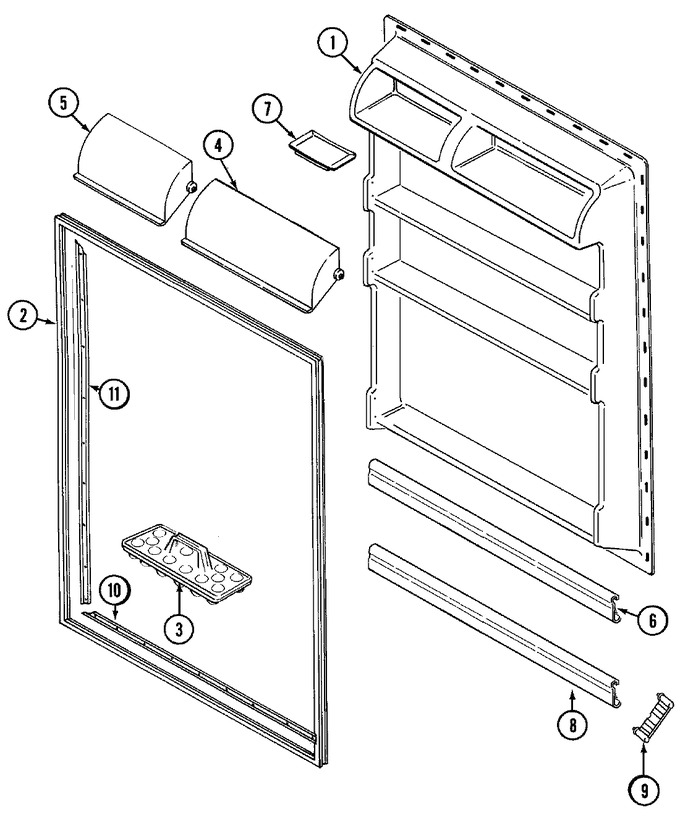

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65275-5		Screw	13	Appelez-nous	-
1	69462-1		Liner	13	Appelez-nous	-
2	70025-8		Gasket, F.f. Door	13	Appelez-nous	-
3	60066-1		Tray, Egg	13	Appelez-nous	-
4	69058-31		Door, Dairy	13	Appelez-nous	-
5	69058-29		Door, Dairy	13	Appelez-nous	-
6	WP70111-108		Trim, Shelf (24 7/8``)   (Replaces: 70111-137)	13		Immediately	$ 104.35
7	29936-2		Tray, Butter	13	Appelez-nous	-
8	WP70111-108		Trim, Shelf   (Replaces: 70111-54)	13		Immediately	$ 104.35
9	70197-1		Retainer, Shelf Trim	13		Immediately	$ 14.18
10	69999-6		Retainer,gasket(top/bot)----na	13	Appelez-nous	-
11	69999-8		Retainer, F.f. Gasket (side)	13	Appelez-nous	-
