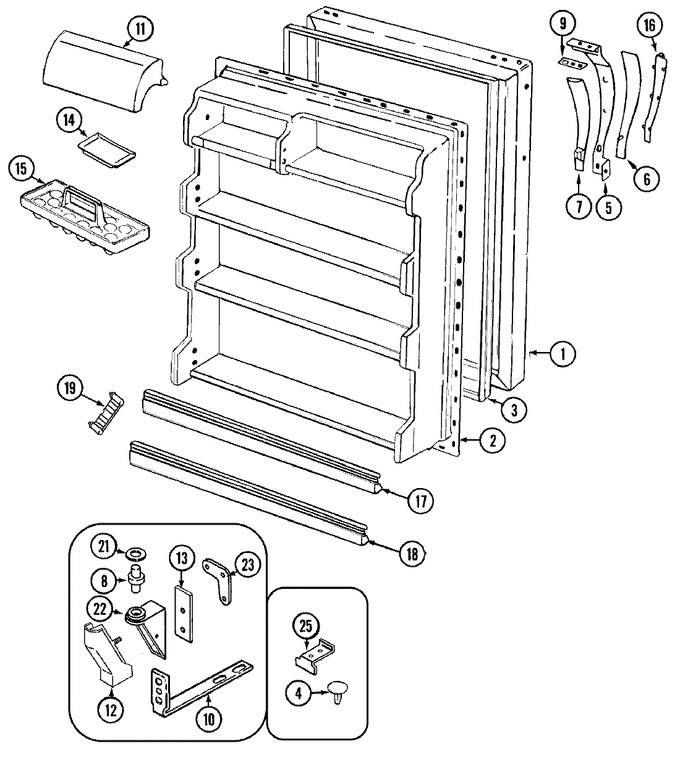

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-5-AM		Panel, F.f. Door (alm)	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
2	69462-1		Liner	10	Appelez-nous	-
3	70025-8		Gasket, F.f. Door	10	Appelez-nous	-
4	69480-4		Plug Button (alm)	10	Appelez-nous	-
5	69300-2		Handle, Door	10	Appelez-nous	-
5	65275-57		Screw	10	Appelez-nous	-
6	68036-4		Insert (alm)	10	Appelez-nous	-
7	60580-6		Insert	10	Appelez-nous	-
7	65275-53		Screw	10	Appelez-nous	-
8	69845-1		Pin, Lower Hinge	10			$ 44.55
9	69835-1		Shim, Handle	10	Appelez-nous	-
9	69301-1		Shim, Handle	10	Appelez-nous	-
10	69511-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
10	414012-1		Screw	10	Appelez-nous	-
10	65275-69		Screw	10	Appelez-nous	-
11	69058-2		Door, Dairy	10	Appelez-nous	-
11	69058-28		Door, Dairy	10	Appelez-nous	-
12	68978-3		Cover, Lower Hinge (alm)	10	Appelez-nous	-
13	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
14	29936-2		Tray, Butter	10	Appelez-nous	-
15	60066-1		Tray, Egg	10	Appelez-nous	-
16	68048-5		Insert, Vinyl	10	Appelez-nous	-
17	WP61003045		Trim, Shelf (26``)   (Replaces: 68832-104)	10			$ 129.55
18	WP61003045		Trim, Shelf   (Replaces: 68832-63)	10			$ 129.55
19	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	10			$ 9.39
20	69256-2		Stop, Door	10	Appelez-nous	-
20	65275-48		Screw	10	Appelez-nous	-
21	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
22	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
22	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
23	65275-59		Screw	10	Appelez-nous	-
23	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
