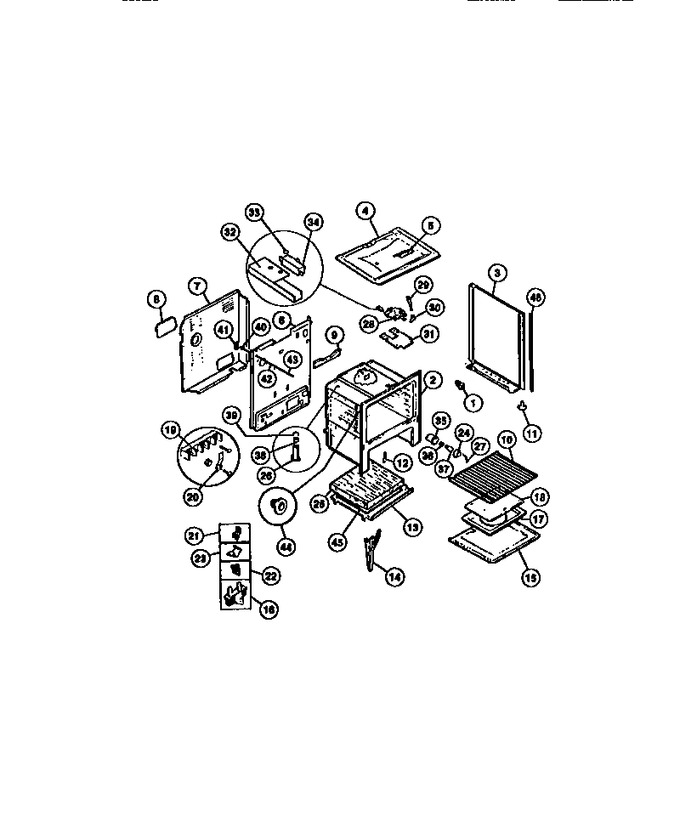

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Basic Body


04 - Element


05 - Utility Drawer


06 - Top & Related Parts


07 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051736		Spacer, Bodyside (8)		Appelez-nous	-
3	3200793		Panel, Bodyside (lh), Almond		Appelez-nous	-
4	3051109		Burner Box		Appelez-nous	-
5	3131101		Cover, Plate		Appelez-nous	-
6	3131567		Back, Main		Appelez-nous	-
7	3051400		Shield, Lower Wall		Appelez-nous	-
8	3051501		Cover, Lower Access		Appelez-nous	-
9	3051368		Cover-flue		Appelez-nous	-
10	3131973		Rack, Oven (2)		Appelez-nous	-
11	636M004P01		Screw, Level (4)		Appelez-nous	-
12	3131570		Cover-hinge Cutout (2)				$ 7.35
13	3200825		Shield-wool Lower		Appelez-nous	-
14	3051414		Channel, Door Hinge (2)		Appelez-nous	-
15	3051104		Bottom, Oven		Appelez-nous	-
17	539T010F01-86		Broiler Pan		Appelez-nous	-
18	3131356		Insert, Broiler Pan		Appelez-nous	-
19	709T031P01		Terminal Block		Appelez-nous	-
20	711T048P01		Ground Strap		Appelez-nous	-
21	3011805		Clip, Thermal Bulb		Appelez-nous	-
22	3051162		Glide-drawer (2)			Immediately	$ 8.22
23	3051367		Clip-wire		Appelez-nous	-
24	3131298		Glass, Oven Lite Lens		Appelez-nous	-
25	3200847		Insulation, Bottom		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	3131104		Wire, Glass Retainer		Appelez-nous	-
28	3015361		Latch Door		Appelez-nous	-
29	3051473		Handle, Latch		Appelez-nous	-
30	358T158P02		Knob, Latch		Appelez-nous	-
31	3051413		Shield-latch		Appelez-nous	-
32	3131593		Shield, Bi Metal Catch		Appelez-nous	-
33	3051733		Fastener, Push On (3)		Appelez-nous	-
34	3131672		Switch, Latching		Appelez-nous	-
35	3131363		Tube, Oven Lite		Appelez-nous	-
36	3051735		Socket, Oven Lite		Appelez-nous	-
37	374T018P05		Lite Bulb, Oven		Appelez-nous	-
38	244T041P01		Filter, Catalyst		Appelez-nous	-
39	612T079P01		Retain, Catalyst		Appelez-nous	-
40	695T128P04		Switch, Door		Appelez-nous	-
41	3131289		Bracket, Lite Switch		Appelez-nous	-
42	3051495		Rod, Light		Appelez-nous	-
43	3051251		Cover, Rod		Appelez-nous	-
44	3051713		Bottom Remote Lite Switch		Appelez-nous	-
45	3200848		Shield,heat ,lower		Appelez-nous	-
46	3051326		Trim-vertical Bodyside (2)		Appelez-nous	-
46	3200834		Shield-heat, Body Side		Appelez-nous	-
*69041	3131303		Insulation, Back		Appelez-nous	-
*69042	3131903		Bumper				$ 55.36
*69043	636T163P01		Screw, Hinge Mounting (6)		Appelez-nous	-
*69044	479T069P41		Nut, Hex, Brass (6)		Appelez-nous	-
*69045	3131305		Insulation, Touch		Appelez-nous	-
*69047	3200833		Insulation, Wrap		Appelez-nous	-
*69048	3200846		Fastener, Edge Mounting (2)		Appelez-nous	-
30A	636T144P01		Screw, Set Latch Knob		Appelez-nous	-
3A	3200790		Panel, Bodyside (rh), Almond		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
