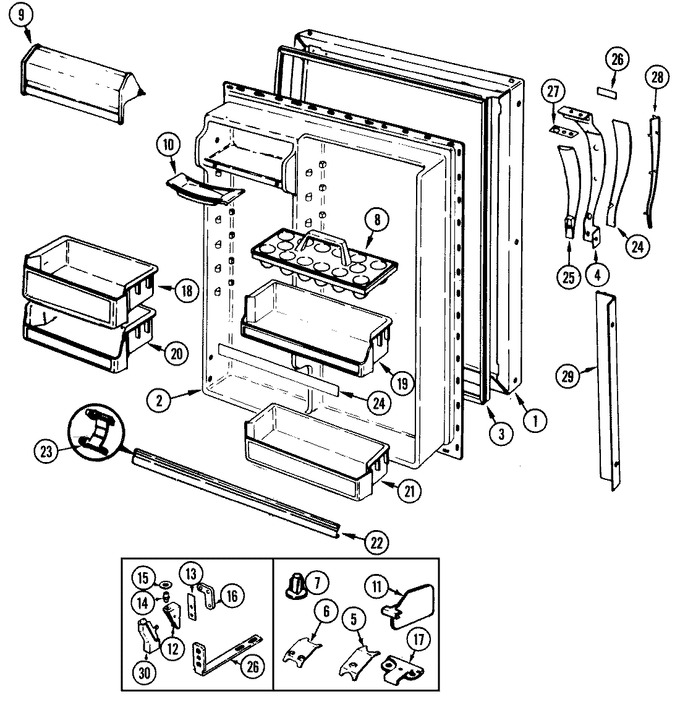

GT23X93V (BOM: DF89A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	72342-5-WW	Panel, F.f. Door (wht)	10	Appelez-nous	-
2	69460-1	Liner	10	Appelez-nous	-
2	65275-5	Screw	10	Appelez-nous	-
3	70025-8	Gasket, F.f. Door	10	Appelez-nous	-
4	69300-2	Handle, Door	10	Appelez-nous	-
4	65275-57	Screw	10	Appelez-nous	-
5	56209-3	Clip, Stop Screw	10	Appelez-nous	-
6	60123-2	Clip, Stop Screw	10	Appelez-nous	-
7	55782-10	Plug Button, Hdle & Door Stop	10	Appelez-nous	-
8	60066-1	Tray, Egg	10	Appelez-nous	-
9	69058-2	Door, Dairy	10	Appelez-nous	-
9	69058-28	Door, Dairy	10	Appelez-nous	-
10	29936-2	Tray, Butter	10	Appelez-nous	-
11	64097-1	Organizer, Shelf	10	Appelez-nous	-
12	69516-4	Hinge, Lower (zinc)	10	Appelez-nous	-
12	65275-51	Screw, Lower Hinge	10	Appelez-nous	-
13	69510-1	Shim, Lower Hinge	10	Appelez-nous	-
14	69845-1	Pin, Lower Hinge	10			$ 44.55
15	67483-3	Washer, Lower Hinge (Replaces: 67483-2)	10		Immediately	$ 45.86
16	65275-59	Screw	10	Appelez-nous	-
16	69511-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
17	69256-2	Stop, Door	10	Appelez-nous	-
17	65275-48	Screw	10	Appelez-nous	-
18	69872-7	Shelf, Pick-off	10	Appelez-nous	-
19	69872-11	Shelf, Pick-off	10	Appelez-nous	-
20	69872-9	Shelf, Pick-off	10	Appelez-nous	-
21	69872-10	Shelf, Pick-off	10	Appelez-nous	-
21	69794-1	Retainer, Bottle	10	Appelez-nous	-
22	WP61003045	Shelf Trim (Replaces: 68832-21)	10			$ 129.55
23	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)	10			$ 9.39
24	68036-3	Insert (wht)	10	Appelez-nous	-
25	60580-5	Insert	10	Appelez-nous	-
26	69511-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
27	69301-1	Shim, Handle	10	Appelez-nous	-
27	65275-53	Screw	10	Appelez-nous	-
28	68048-7	Insert, Vinyl	10	Appelez-nous	-
29	60453-44	Trim, F.f. Door (wht)	10	Appelez-nous	-
30	68978-4	Cover, Lower Hinge (wht)	10	Appelez-nous	-
