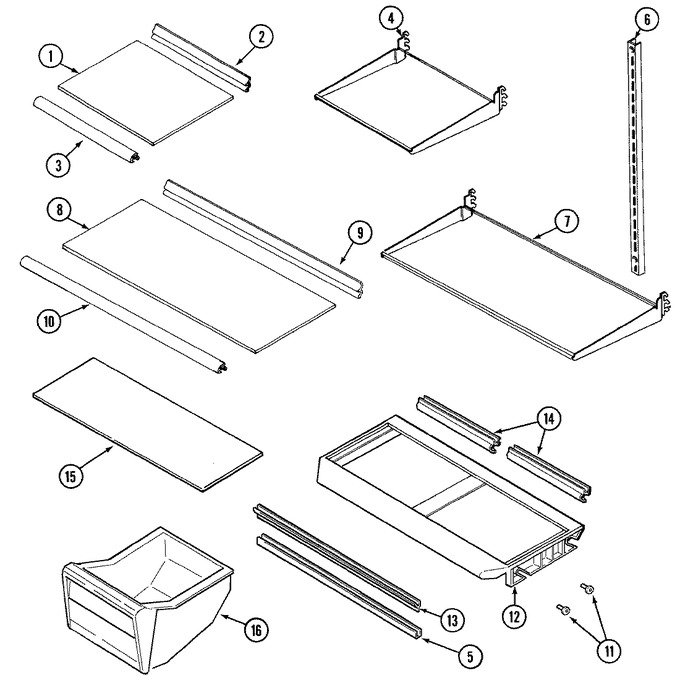

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002763		Glass, Split Shelf	10	Appelez-nous	-
2	61002521		Trim, Meat/split Shelf (rear)	10	Appelez-nous	-
3	61002522		Trim, Meat/split Shelf (frt)	10	Appelez-nous	-
4	61002767		Frame, Split Shelf	10	Appelez-nous	-
5	61002309		Rail, Crisper Support	10	Appelez-nous	-
6	400037-28		Screw	10	Appelez-nous	-
6	61002253		Rail, Cant. Shelf	10	Appelez-nous	-
6	61002254		Rail, Shelf Support (lt/rt)	10	Appelez-nous	-
6	WP67006908		Screw   (Replaces: 400022-1)	10		Immediately	$ 7.16
7	61002768		Frame, Full Shelf	10	Appelez-nous	-
8	61002764		Glass, Full Shelf	10	Appelez-nous	-
9	61002527		Trim, Full Shelf (rear)	10	Appelez-nous	-
10	61002528		Trim, Full Shelf (frt)	10	Appelez-nous	-
11	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
11	67764-1		Support, Crisper Shelf	10			$ 8.05
12	61002529		Shelf, Crisper	10	Appelez-nous	-
13	61002389		Seal, Crisper Shelf (frt)	10	Appelez-nous	-
14	61002390		Seal, Crisper (rear)	10	Appelez-nous	-
15	61002459		Glass, Crisper Shelf	10			$ 91.02
16	61002779		Pan, Crisper	10	Appelez-nous	-
