01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Dispenser


09 - Ice Container


10 - Ice Maker

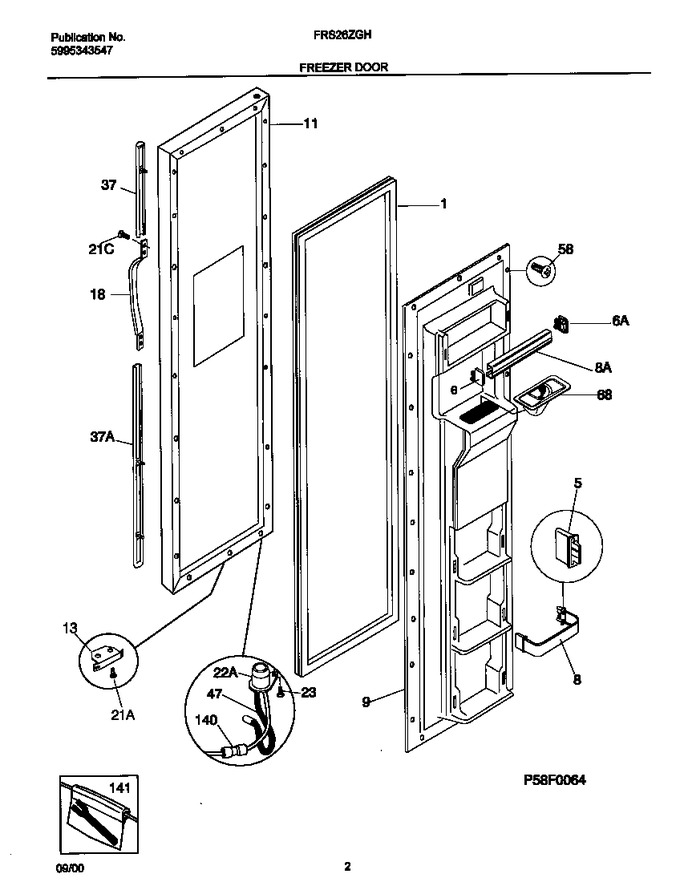

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734323		Gasket-frzr Door, Black, Magnetic				$ 215.25
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303323485		Support-door Rack, White, Rh		Appelez-nous	-
6	5303323484		Support-door Rack, White, Lh		Appelez-nous	-
8	218807027		Rack-door,w/end Caps		Appelez-nous	-
8	215474039		Rack-door		Appelez-nous	-
9	218510401		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917731		Panel-ext Frzr Door,black ,w/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218025205		Handle-door, Metallic Gray, Soft Grip		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218886801		Screw-8-32 X 1/2 No. 10 Truss Ca,8 32 X 1/2 10		Appelez-nous	-
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	218958100		Screw,flat Hd ,8-32d X 1/2		Appelez-nous	-
37	218811610		Trim-handle,metallic Gray ,w/dec Gold Band,& Snap-on Loc		Appelez-nous	-
37	218811609		Trim-handle,metallic Gray ,w/dec Gold Band,& Snap-on Loc				$ 59.68
47	218922901		Wiring Harness,frzr Door		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
68	218495200		Chute-ice		Appelez-nous	-
140	218922801		Elbow-water Tube				$ 55.28
141	218929601		Tool-push Connector		Appelez-nous	-
*16040	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218676003		Band-decorative, Gold				$ 47.11
