Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 61002752 Tunnel, Air 10 Appelez-nous -
2 WP489474 Screw   (Replaces: 61002429) 10 In-Stock Immediately $ 7.17

2 61002318 Cover, Evaporator 10 Appelez-nous -
3 WP854334 Seal, Foam (ctr)   (Replaces: 61002540) 10 Special Order $ 11.95

3 61004624 Seal, Evaporat0r Cover 10 Appelez-nous -
4 61004861 Tray, Drip 10 Appelez-nous -
4 61004832 Barrier, Foil 10 Appelez-nous -
5 61001935 Blade, Evaporator Fan 10 Appelez-nous -
6 WP489399 Screw   (Replaces: 61005240) 10 Special Order $ 6.26

6 61001930 Bracket, Evaporator Fan 10 Appelez-nous -
7 61005387 Motor, Evaporator Fan 10 Appelez-nous -
8 61004834 Clip, Defrost Heater 10 Appelez-nous -
9 61005134 Heater, Defrost 10 Appelez-nous -
10 61002713 Basket, Frz. 10 Appelez-nous -
10 61002356 Clip, Basket 10 Appelez-nous -
11 61004836 Support, Evaporator (rt) 10 Appelez-nous -
11 61004835 Support, Evaporator (lt) 10 Appelez-nous -
12 WP61005254 Thermostat, Defrost   (Replaces: 61005254) 10 In-Stock Immediately $ 103.09

13 61002272 Shield, Light 10 Appelez-nous -
14 12001398 Evap/heat Exch. Assy. 21 & 24` 10 Special Order $ 255.61

15 WP61002140 Tray, Ice   (Replaces: 61002140) 10 Special Order $ 18.23

16 61002836 Shelf, Frz. 10 Appelez-nous -
17 61005015 Plug Button, Ice Maker 10 Appelez-nous -
18 61002026 Cap, Fill Tube 10 Appelez-nous -
19 61002027 Cap, I/m Wire Harness 10 Appelez-nous -
20 70459-1 Receptacle, Bulb 10 Appelez-nous -
21 61002177 Pan, Ice 10 Appelez-nous -
22 61002663 Shelf, Frz. (upper) 10 Appelez-nous -
23 61002234 Retainer, Evaporator Fan 10 Appelez-nous -
23 WP489399 Screw   (Replaces: 61005240) 10 Special Order $ 6.26

24 61002235 Bushing, Evaporator Fan 10 Appelez-nous -
25 61002662 Leg, Frz. Shelf 10 Appelez-nous -
26 W11618980 Bulb, Light (40w)   (Replaces: 61002812) 10 Special Order $ 19.22

27 W11384469 Switch, Light   (Replaces: 66987-1) 10 In-Stock Immediately $ 33.51

28 61003630 Wire Harness, Frz. 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

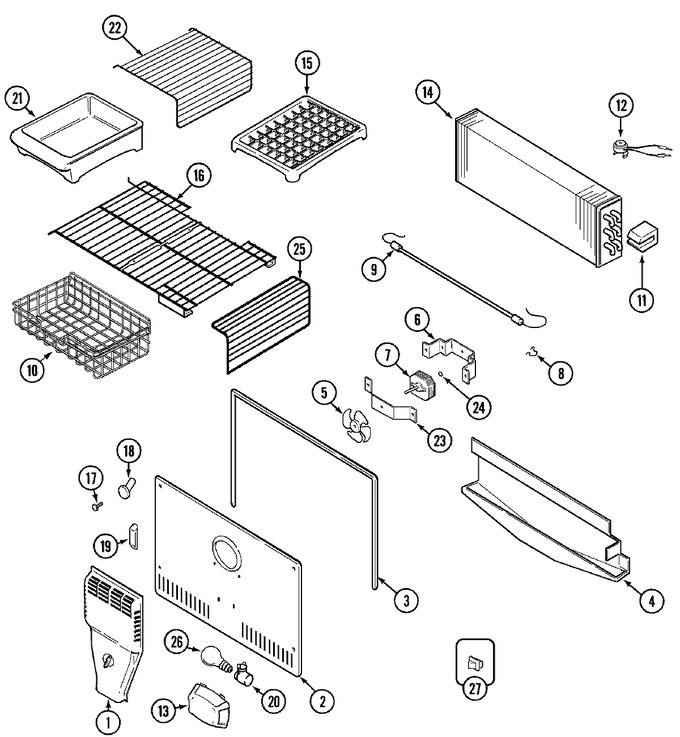

Diagram for GT2427PEGW
