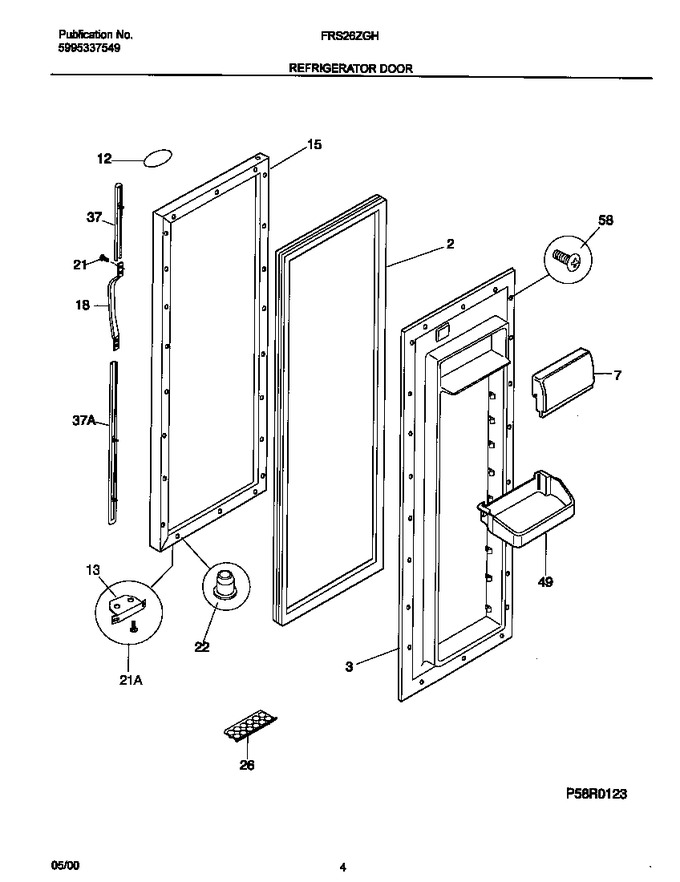

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215403201		Panel-inner Door, Refr		Appelez-nous	-
7	5304404909		Door-dairy		Appelez-nous	-
12	218364005		Frame-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917489		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
18	218025204		Handle-door, Almond, Soft Grip		Appelez-nous	-
21	218886801		Screw-8-32 X 1/2 No. 10 Truss Ca,8 32 X 1/2 10		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg				$ 13.46
37	215867065		Trim-handle,almond ,upper ,w/dec Gold Band,and Snap Lock		Appelez-nous	-
37	215867062		Trim-handle,almond ,lower ,w/dec Gold Band,and Snap Lock				$ 114.03
49	218592303		Bin-door, ``mongo``		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*60443	215008605		Label-nameplate,almond		Appelez-nous	-
*60445	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*60446	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218676003		Band-decorative, Gold				$ 47.11
