SELECT A DIAGRAM

01 - Compressor


02 - Controls


03 - Freezer Compartment


04 - Freezer Inner Door


05 - Freezer Outer Door


06 - Fresh Food Inner Door


07 - Fresh Food Outer Door


08 - Optional Ice Maker Kit-uki1500axx


09 - Shelves & Accessories


10 - Wiring Information

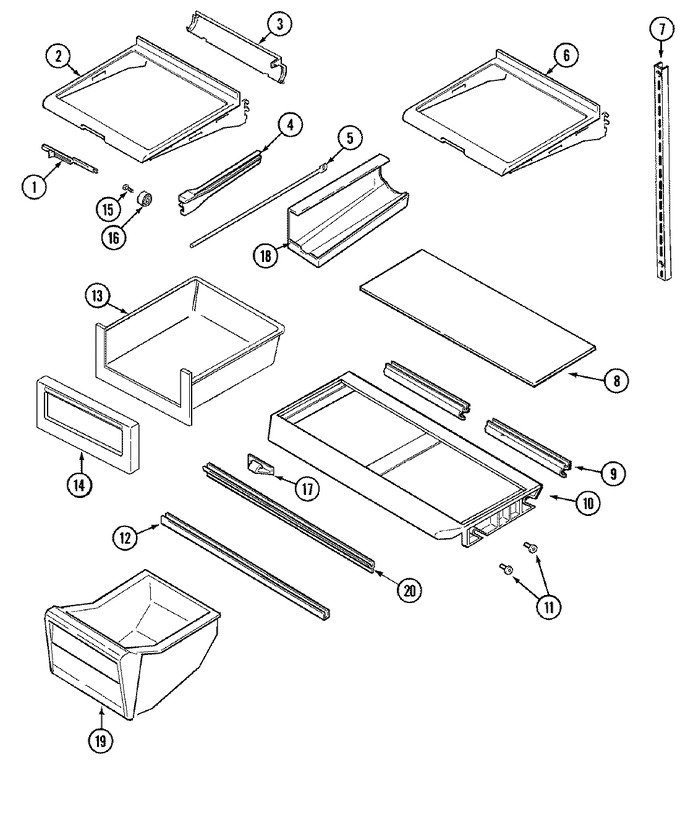

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002302		Slide, Control	10	Appelez-nous	-
1	61002584		Screw	10	Appelez-nous	-
2	61002916		Shelf, Meat	10	Appelez-nous	-
3	61004745		Scoop, Meat Pan	10	Appelez-nous	-
4	61002653		Rail, Meat Pan (rt)	10			$ 24.28
4	61002304		Rail, Meat Pan (lt)	10	Appelez-nous	-
5	61004746		Linkage, Actuator	10	Appelez-nous	-
6	61005554		Shelf, Spillproof	10	Appelez-nous	-
7	61002254		Rail, Shelf Support (lt/rt)	10	Appelez-nous	-
7	400037-28		Screw	10	Appelez-nous	-
7	W11233072		Screw   (Replaces: 61005165)	10		Immediately	$ 12.62
7	61002253		Rail, Cant. Shelf	10	Appelez-nous	-
8	61002900		Glass, Crisper Shelf----na	10	Appelez-nous	-
9	61003487		Seal, Crisper Shelf (rear)	10	Appelez-nous	-
10	61002897		Shelf, Crisper	10	Appelez-nous	-
11	67764-1		Support, Crisper Shelf	10			$ 8.05
11	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
12	61005099		Rail, Crisper Support	10	Appelez-nous	-
13	61002859		Pan, Meat	10	Appelez-nous	-
14	61002923		Front, Meat Pan	10	Appelez-nous	-
15	WP61002308		Screw   (Replaces: 61004728)	10			$ 6.89
16	WP61002307		Roller   (Replaces: 61002307)	10		Immediately	$ 7.30
17	61002187		Control, Humidity	10	Appelez-nous	-
18	61002657		Holder, Beverage	10	Appelez-nous	-
19	61005555		Pan, Crisper	10	Appelez-nous	-
20	61002898		Seal, Crisper Shelf (frt.)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
