SELECT A DIAGRAM

01 - Cover

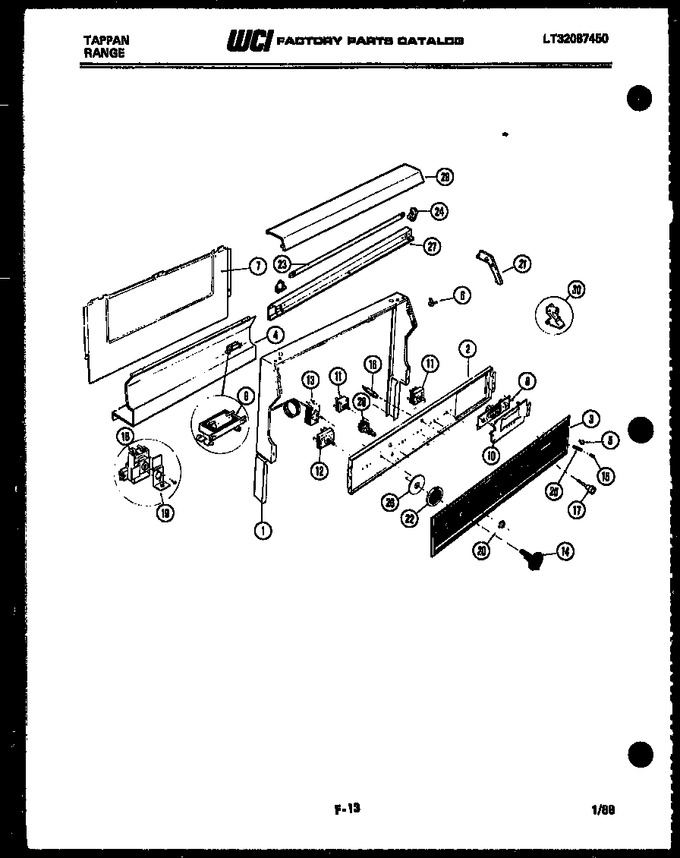

02 - Backguard


03 - Body Parts


04 - Broiler Parts


05 - Drawer Parts


06 - Cooktop Parts


07 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016779		Trim, Wrapper		Appelez-nous	-
2	3051219		Plate-instrmnt Mtg		Appelez-nous	-
3	3015360		Panel, Control		Appelez-nous	-
4	3051874		Trim-lwr Splasher		Appelez-nous	-
5	3051194		Nut - Decor (2)		Appelez-nous	-
6	3131607		Fastnr-glass (2)		Appelez-nous	-
7	3131123		Shield, Rear Wall		Appelez-nous	-
8	3051119		Clock		Appelez-nous	-
9	3051115		Ballast		Appelez-nous	-
10	3131556		Plate-timer Mtg		Appelez-nous	-
11	699T015P02		Switch, Top (4)		Appelez-nous	-
12	3051315		Switch, Selector		Appelez-nous	-
13	3051322		Thermostat, Oven		Appelez-nous	-
14	3051188		Knob, Control (6)		Appelez-nous	-
15	358T206P01		Knob, Clock		Appelez-nous	-
16	3091461		Indicator Lite-s/u		Appelez-nous	-
16	3091462		Indicator Lite-ovn		Appelez-nous	-
17	106T051P01		Bttn-el Clock (4)		Appelez-nous	-
18	3051324		Thermos. Ovn S/c		Appelez-nous	-
19	3131467		Angle Supt S/c Thermo.		Appelez-nous	-
20	3051727		Bezel-sw.		Appelez-nous	-
21	3051135		Cap, End Rh		Appelez-nous	-
21	3051134		Cap, End Lh		Appelez-nous	-
22	3051129		Dial-sel. Sw.		Appelez-nous	-
22	3051128		Dial-top Elmnt Sw (4)		Appelez-nous	-
22	3051131		Dial-therm.		Appelez-nous	-
23	3131275		Bulb-fluor				$ 49.40
24	3051223		Recept.-fluor Lt Rh		Appelez-nous	-
24	3051222		Recept.-fluor Lt Lh		Appelez-nous	-
25	3051347		Shaft-elec Clock		Appelez-nous	-
26	3051304		Spacer, Dial (5)		Appelez-nous	-
27	3131277		Supt-fluor Recept. Mtg.		Appelez-nous	-
28	3051312		Switch-fl. Lt.		Appelez-nous	-
28	695T211P02		Switch-ov Lt		Appelez-nous	-
29	3131466		Trim, Canopy		Appelez-nous	-
30	3131237		Support-backgrd		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
