SELECT A DIAGRAM

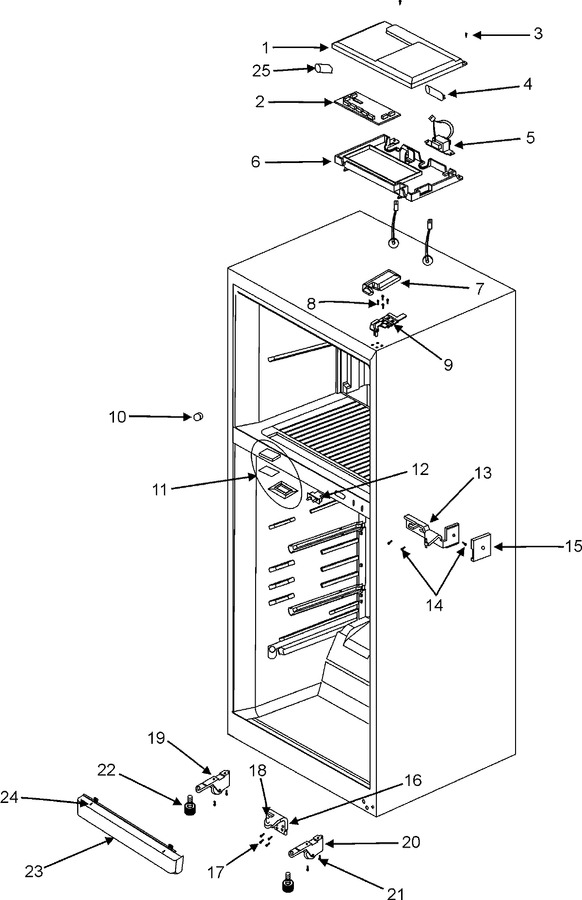

01 - Cabinet


02 - Compressor


03 - Doors


04 - Freezer Compartment


05 - Refrigerator Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	63001949		Cover, M/pcb Box		Appelez-nous	-
2	63001895		Main Assy., Pcb		Appelez-nous	-
2	63002032		Main Assy., Pcb		Appelez-nous	-
3	W11233072		Screw   (Replaces: 63001096)			Immediately	$ 12.62
4	63002033		Capacitor, Run		Appelez-nous	-
4	63001897		Capacitor, Run		Appelez-nous	-
5	63002034		Transformer, Power		Appelez-nous	-
6	63001933		Box, M/pcb		Appelez-nous	-
7	63001946		Cover, Upper Hinge		Appelez-nous	-
8	63002006		Bolt T		Appelez-nous	-
9	63002039		Hinge, Upper		Appelez-nous	-
10	63001935		Cap, Screw		Appelez-nous	-
11	63001962		Case Deo As		Appelez-nous	-
12	63002010		Switch, Door		Appelez-nous	-
13	63002019		Hinge, Center		Appelez-nous	-
14	63002004		Bolt M		Appelez-nous	-
15	63001945		Cover, Center Hinge		Appelez-nous	-
16	63001976		Hinge, Lower		Appelez-nous	-
17	63002006		Bolt T		Appelez-nous	-
18	63001894		Washer		Appelez-nous	-
19	63001942		Caster, Front Left		Appelez-nous	-
20	63001943		Caster, Front Right		Appelez-nous	-
21	63002035		Screw		Appelez-nous	-
22	63001965		Foot Assy., Adjusting		Appelez-nous	-
23	63001951		Cover, Cab Bracket (kickplate)		Appelez-nous	-
24	W11233072		Screw   (Replaces: 63001096)			Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
