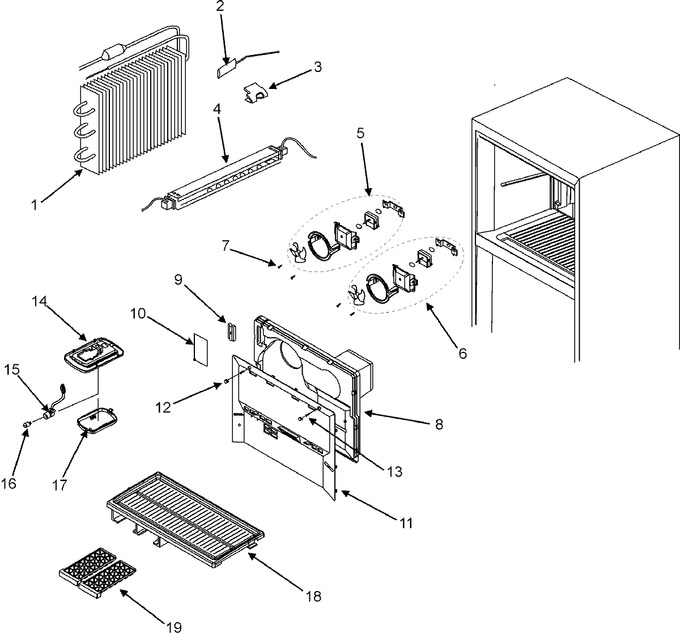

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	63001955		Evaporator		Appelez-nous	-
2	63001966		Fuse, Temp		Appelez-nous	-
3	63001053		Clip, Fuse		Appelez-nous	-
4	63001929		Heater, Defrost		Appelez-nous	-
5	63001952		Motor Assy., Freezer		Appelez-nous	-
6	63001956		Motor Assy., Refrig.		Appelez-nous	-
7	W10142289		Screw   (Replaces: 63001046)				$ 8.24
8	63001978		Insulator, Evap Cover		Appelez-nous	-
9	63001934		Len, F Sens		Appelez-nous	-
10	63002016		Tape		Appelez-nous	-
11	63001980		Cover, Evaporator		Appelez-nous	-
12	63001313		Cap, Evaporator Cover		Appelez-nous	-
13	W10142289		Screw   (Replaces: 63001046)				$ 8.24
14	63001957		Housing, F Lamp		Appelez-nous	-
15	63002002		Socket, Light		Appelez-nous	-
16	63002036		Bulb, Light		Appelez-nous	-
17	63002013		Cover, Frz. Light		Appelez-nous	-
18	63002000		Shelf, Frz.		Appelez-nous	-
19	63001938		Tray, Ice		Appelez-nous	-
