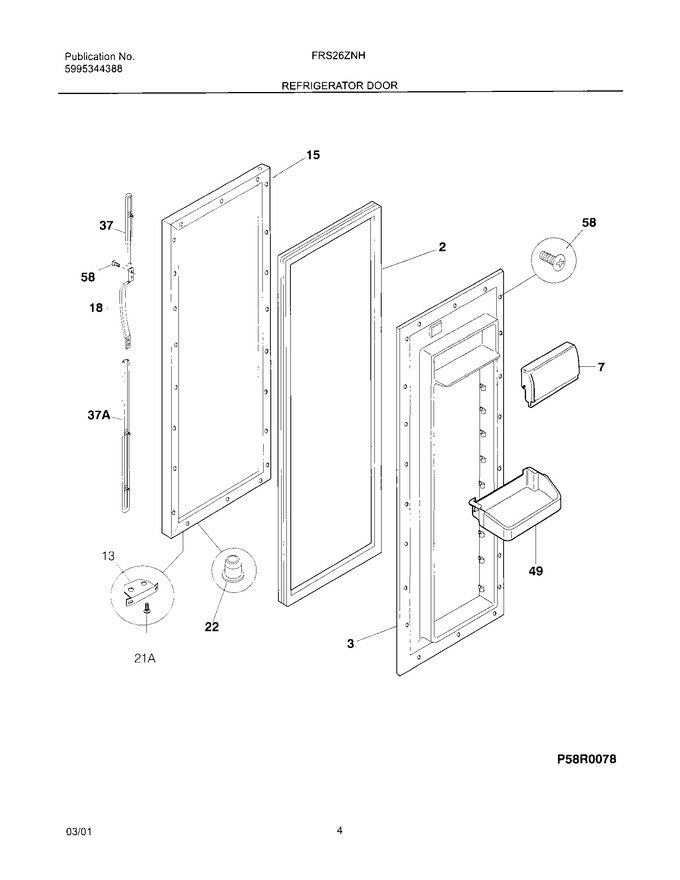

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734324		Gasket-refr Door, Black, Magnetic				$ 242.92
3	215403201		Panel-inner Door, Refr		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303304563		Door-dairy		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917490		Panel-refr Door, Black, W/foam Insulatn		Appelez-nous	-
18	218762703		Handle-door,black				$ 67.04
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218886801		Screw-8-32 X 1/2 No. 10 Truss Ca,8 32 X 1/2 10		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
37	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
37	5304471621		Trim-handle,black ,lower   (Replaces: 218811617)				$ 97.83
37	215782300		Lock-handle Trim,snap-in				$ 34.49
37	218811620		Trim-handle,black ,upper		Appelez-nous	-
49	218592325		Bin-door,2-liter				$ 112.51
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
