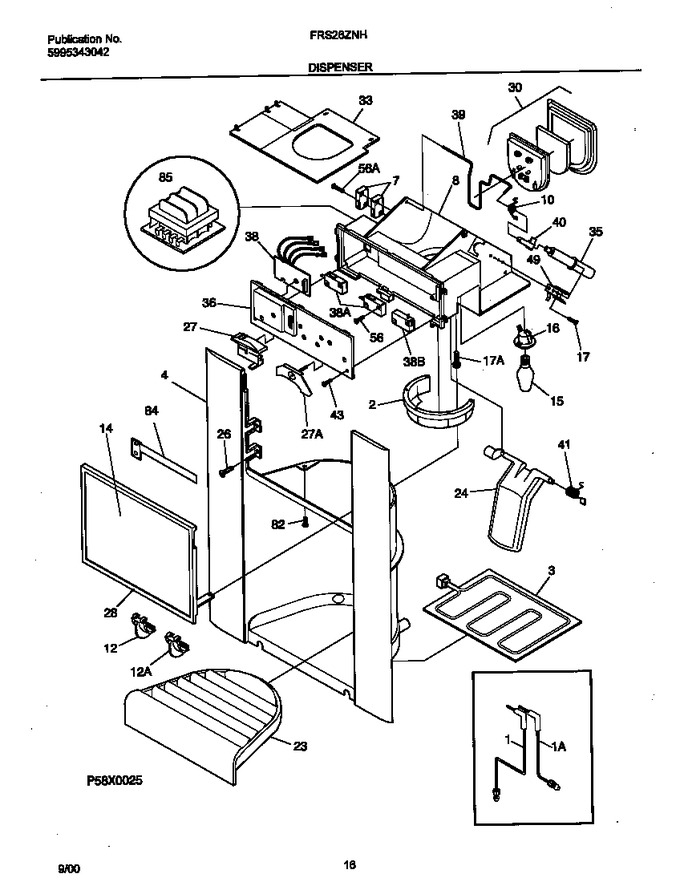

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218832301		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
1	218859901		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
2	218505301		Deflector-ice Disp, White		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	218852401		Housing-dispenser,white		Appelez-nous	-
7	218284800		Switch-actuator,micro		Appelez-nous	-
8	218874901		Module-dispenser		Appelez-nous	-
10	218209800		Spring,dispenser Door		Appelez-nous	-
12	218925401		Knob-selector,white				$ 38.17
12	218925501		Spring-knob				$ 20.56
12	218836201		Knob-selector,white		Appelez-nous	-
14	218903727		Label-module Cover,white		Appelez-nous	-
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215794400		Screw,6 X 1/4		Appelez-nous	-
23	5303297844		Drip Tray,white				$ 50.03
24	218921301		Actuator,white		Appelez-nous	-
26	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
27	218814901		Rocker-switch		Appelez-nous	-
27	218432600		Cam-slide				$ 53.97
28	218906201		Cover-module,white				$ 26.78
30	215753600		Door Assy-ice Chute, W/gasket, Insul		Appelez-nous	-
33	218870201		Heater-disp Throat				$ 244.43
35	218740005		Heat Motor,115 V				$ 39.79
36	218906001		Cover-selector Sw				$ 24.01
38	241689106		Switch-micro,single Pole ,single Throw   (Replaces: 218835401)			Immediately	$ 8.60
38	218905901		Pc Board				$ 47.67
38	218479900		Switch-micro,single Pole ,double Throw				$ 57.65
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215917800		Spring-actuator				$ 10.03
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
56	218927401		Screw,pan Head ,4-24 X 1.125 ,microswitch Mtg		Appelez-nous	-
56	218434300		Screw-micro Switch, Pan Head, 4-24 X 9/16		Appelez-nous	-
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
84	218906401		Switch-membrane		Appelez-nous	-
85	218948201		Transformer-dispenser		Appelez-nous	-
*92487	218863111		Wiring Harness,disp		Appelez-nous	-
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
17B	215923400		Washer-flat		Appelez-nous	-
