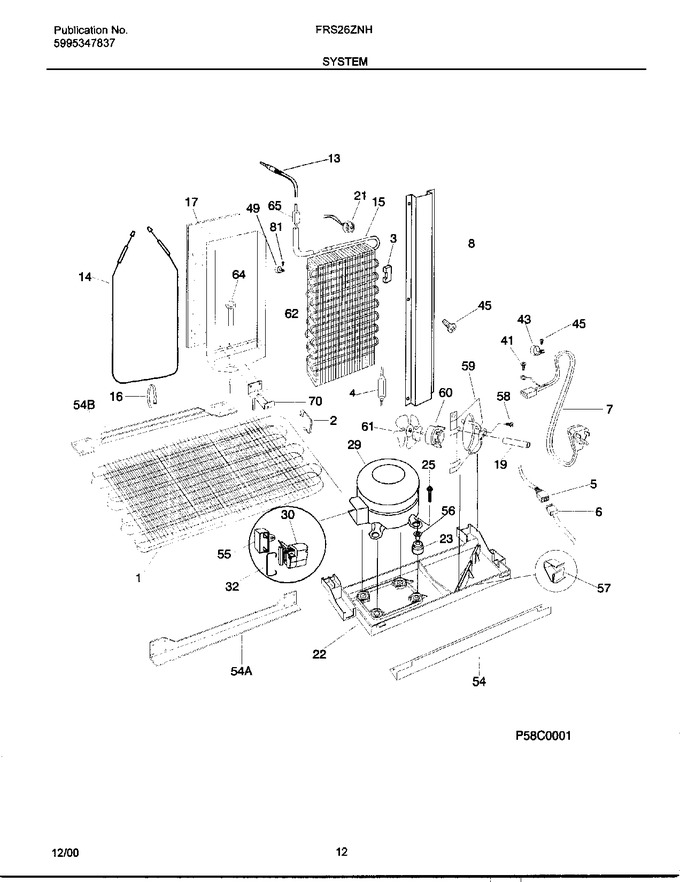

12 - System


14 - Dispenser


16 - Ice Container


18 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303289029		Clip-cond Mtg. (4)		Appelez-nous	-
3	218679608		Block-evap Coil,styrofoam ,(1)		Appelez-nous	-
5	218959901		Wiring Harness,main		Appelez-nous	-
7	215459201		Cord-electric Power				$ 66.47
8	218803400		Cover-wiring				$ 79.11
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	5304415956		Insulator-evap		Appelez-nous	-
19	218631200		Tube, Rubber		Appelez-nous	-
22	218811100		Base-compressor Mtg, (drain Pan)		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
25	218773500		Screw-compressor Mtg, Hex Washer Head, 10b X 1 1/4		Appelez-nous	-
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
41	5308000039		Screw		Appelez-nous	-
43	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
49	218990801		Bracket-evap/cvr Mtg				$ 63.79
54	5303289027		Rail-cabinet Base,rear		Appelez-nous	-
56	218769300		Insert-compressor Mtg		Appelez-nous	-
57	218247300		Clip-wiring Harness		Appelez-nous	-
58	218956901		Screw-cond Fan Mtr,hex Head ,8-36 X 7/16		Appelez-nous	-
59	218956601		Shroud-cond Fan Mtr		Appelez-nous	-
61	218956501		Blade-condenser Fan		Appelez-nous	-
62	215048703		Trough-drain,w/shield Assy ,& 17 Insulator		Appelez-nous	-
64	5303289063		Tube-drain		Appelez-nous	-
65	5303289301		Spacer-tube				$ 35.39
70	5303289041		Bracket-evap/cvr Mtg		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
54A	5303289311		Rail-compr Support		Appelez-nous	-
54B	5303289292		Rail-cabinet Base, Front		Appelez-nous	-
F1	218787900		Condenser				$ 122.95
F13	215006701		Heat Exchanger, Suction Line		Appelez-nous	-
F14	218169805		Heater-defrost				$ 168.36
F15	240553101		Evaporator,bundy   (Replaces: 218955802)				$ 170.62
F21	297216600		Thermostat-defrost   (Replaces: 218969902)			Immediately	$ 27.52
F29	218894802		Compressor,r134a ,w/o Electricals		Appelez-nous	-
F30	5304410951		Starter-ptc   (Replaces: 218721110)				$ 145.58
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
F54A	215732700		Screw,pan Head ,10-12a X 0.50		Appelez-nous	-
F55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
F6	218960201		Wiring Harness,machine Compt		Appelez-nous	-
F60	218956401		Motor-condenser Fan		Appelez-nous	-
NI	218679605		Block-evap Coil,2.05 Wide ,styrofoam ,(2)		Appelez-nous	-
NI	5304406721		Spacer-cond Tube,round ,5/8 Od X .81``lg		Appelez-nous	-
NI	5303289026		Spacer Tube		Appelez-nous	-
NI	5303208866		Spacer-cond Tube,black				$ 1.94
NI	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
NI	5303917166		Hot Tube Repair Kit, Service		Appelez-nous	-
NI	5303001199		Clamp				$ 65.92
NI	218769200		Screw,hx Wshr Hd Spec ,6-32 X .5		Appelez-nous	-
NI	5300141713		Screw,hex Wshr Hd ,8-32 X 0.625 ,spec		Appelez-nous	-
NI	3206414		Tube-inlet				$ 31.61
NI	218897001		Screw,hex Washer Head ,8-32 X 1/4				$ 4.40
NI	218815101		Wiring Harness,frzr Controls		Appelez-nous	-
NI	215005200		Wiring Harness,refr Controls		Appelez-nous	-
NI	218956701		Nut,speed ,fan Blade		Appelez-nous	-
NI	218956801		Grommet-silencer		Appelez-nous	-
