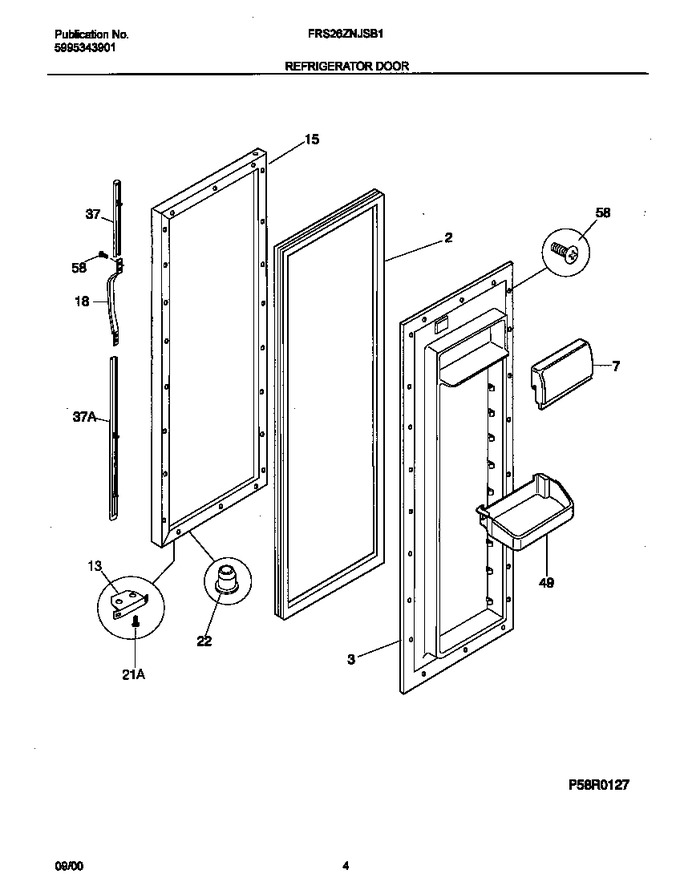

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734324 | Gasket-refr Door, Black, Magnetic |
|
$ 242.92 | |||||
| 3 | 215403201 | Panel-inner Door, Refr |
|
- | |||||
| 7 | 5303304563 | Door-dairy |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 5303918180 | Panel-ext Refr Door,stainless Steel ,w/foam Insulatn |
|
- | |||||
| 18 | 218762708 | Handle-door,gunmetal |
|
- | |||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 218811641 | Trim-door Handle,gunmetal ,upper |
|
- | |||||
| 37 | 218811640 | Trim-door Handle,gunmetal ,lower |
|
$ 89.92 | |||||
| 49 | 218592325 | Bin-door,2-liter |
|
$ 112.51 | |||||
| 58 | 218781101 | Screw,pan Head ,8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| *72363 | 01300019EA | Cleaner, Stainless Steel (Replaces: 218490900) |
|
Immediately | $ 21.27 | ||||
| *72364 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
