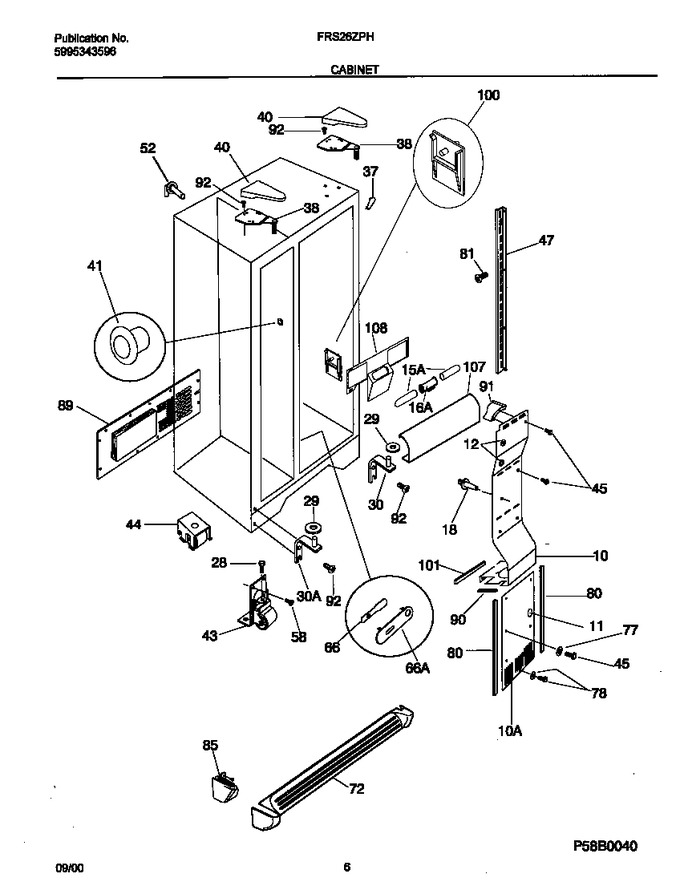

SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice Dispenser


09 - Ice Container


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215637402		Cover-evap Coil,lower		Appelez-nous	-
10	215637602		Cover-air Duct				$ 139.65
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303001147		Plug-harness Hole   (Replaces: 215230400)				$ 22.30
15	218708700		Light Bulb/lamp, Crisper Light, (2)				$ 50.78
16	5303299157		Socket-light/lamp, Crisper Light				$ 63.63
18	5303289043		Support-air Duct Cvr, 2.55`` Long		Appelez-nous	-
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215314301		Washer,.40 X .75 X .06 ,nylon				$ 3.94
30	218993801		Bracket-lower Hinge,rh ,w/hinge Pin				$ 112.88
37	5303321082		Trim-cabinet Corner, Almond		Appelez-nous	-
40	5303318774		Cover-upper Hinge, Almond				$ 46.83
41	5304509705		Grommet,shelf Mtg ,0.69`` ,rh   (Replaces: 5303001609)				$ 10.01
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
44	218738300		Roller Assy, Rear, (2)				$ 51.98
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
52	215454600		Tube-water,ice Mold Fill ,elbow				$ 81.11
58	5308002748		Screw		Appelez-nous	-
66	215050201		Damper-meat Keeper		Appelez-nous	-
66	218171301		Cover-meat Kpr Dmpr				$ 45.09
72	218359605		Grille/kickplate, Almond				$ 98.38
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
80	218249802		Seal-coil Cover, (2)		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
85	218922704		Cover-lower Hinge,almond		Appelez-nous	-
89	218871501		Cover-machine Compt		Appelez-nous	-
90	215022602		Seal-foam		Appelez-nous	-
91	218964701		Deflector-air,air Duct Cover		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
100	5303288973		Support-pan Cover				$ 24.41
107	218835901		Shield-light,crisper		Appelez-nous	-
108	218834202		Cover-wiring,crisper Light				$ 56.05
*75242	5303289044		Support-air Duct Cvr,1.83`` Long		Appelez-nous	-
*75243	218871201		Washer,nylon ,0.363 Id W/nibs		Appelez-nous	-
*75244	5303001038		Washer, .28 X .62 X .19, Nylon				$ 13.34
*75245	218979601		Tapping Plate,lower Hinge		Appelez-nous	-
*75246	5304500407		Grommet,shelf Mtg ,1.25`` ,lh   (Replaces: 5308009759)			Immediately	$ 6.38
*75247	5308017044		Screw-roller Mtg,spcl Ind Hex Hd, 5/16-18(23) X 7/8				$ 6.34
*75248	5303289036		Gasket-coil Cover,(2)		Appelez-nous	-
*75249	5303289037		Gasket-air Duct Cvr,(2)		Appelez-nous	-
*75250	5303322647		Tape-foam		Appelez-nous	-
*75251	218902101		Cap-protector, Lower Hinge		Appelez-nous	-
*75253	5303305325		Paint, Touch, Up, Almond		Appelez-nous	-
101A	215305702		Seal-foam		Appelez-nous	-
101B	218663103		Gasket-air Duct Cvr		Appelez-nous	-
30A	218993601		Bracket-lower Hinge,lh ,w/hinge Pin				$ 52.50
30B	218979701		Tapping Plate,lower Hinge		Appelez-nous	-
38A	218215250		Bracket-upper Hinge,with Closer ,almond		Appelez-nous	-
38B	218215252		Bracket-upper Hinge,with Closer ,almond		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
