Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10124350 Not Required Part Or See Note Screw-purchased Locally Appelez-nous -
1 33-9668 Wrapper Appelez-nous -
2 W10124350 Not Required Part Or See Note Screw-purchased Locally Appelez-nous -
2 34-9487 Plate, Reinforcement Appelez-nous -
2 33-8909 Shield Appelez-nous -
2 33-4062 Reinforce Plate Appelez-nous -
2 33-3701 Backguard Pad Appelez-nous -
2 WP33002917 Screw   (Replaces: 25-7435) In-Stock Immediately $ 6.90

3 W10124350 Not Required Part Or See Note Lockwasher (purchased Locally) Appelez-nous -
3 25-7760 Screw Appelez-nous -
3 35-0330 Control Panel Appelez-nous -
4 33-7191 Lh End Cap Appelez-nous -
5 33-7190 Rh End Cap Appelez-nous -
5 25-7496 Screw Appelez-nous -
6 53-0243 Control Shield Appelez-nous -
6 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

7 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

7 25-7461 Clip Appelez-nous -
7 W10124350 Not Required Part Or See Note Washer (purchased Locally) Appelez-nous -
8 35-0484 Timer B Appelez-nous -
8 W10124350 Not Required Part Or See Note Screw-purchased Locally Appelez-nous -
8 35-0115 Timer Mtr 1rpm Appelez-nous -
8 35-0033 Timer Appelez-nous -
9 35-0467 Hub/skirt Asm Appelez-nous -
10 25-6044 Set Screw Appelez-nous -
10 35-0494 Timer Knob B Appelez-nous -
10 33-7508 Timer Knob Appelez-nous -
11 35-0513 Nameplate Appelez-nous -
11 35-0110 Pressure Switch Appelez-nous -
11 35-0339 Nameplate Appelez-nous -
11 35-0340 Nameplate Appelez-nous -
11 35-0341 Nameplate Appelez-nous -
11 35-0515 Nameplate Appelez-nous -
11 35-0514 Nameplate Appelez-nous -
11 35-0447 Nameplate Appelez-nous -
11 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

11 35-0470 Nameplate Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

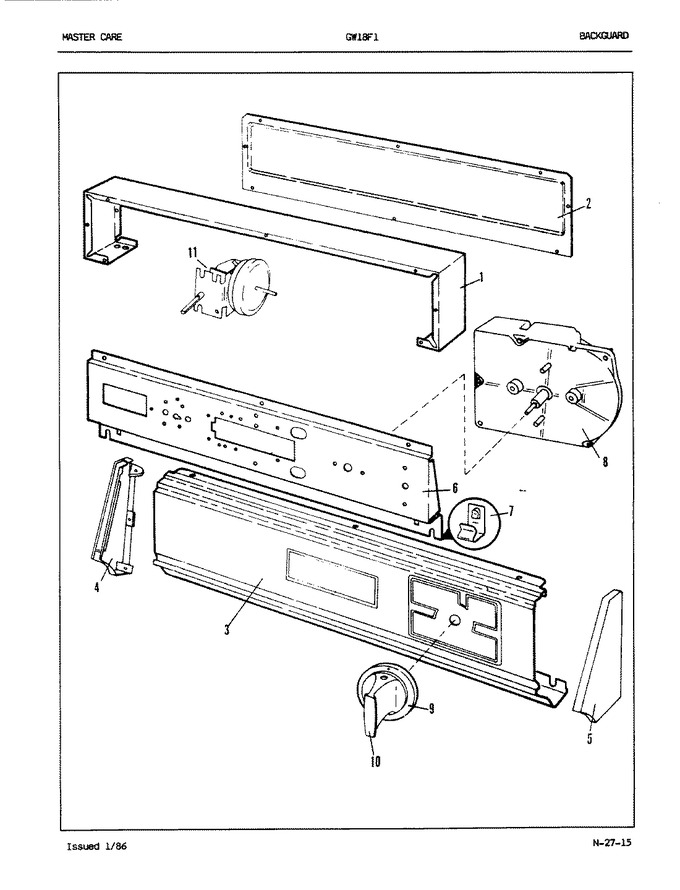

Diagram for GW18F1W
