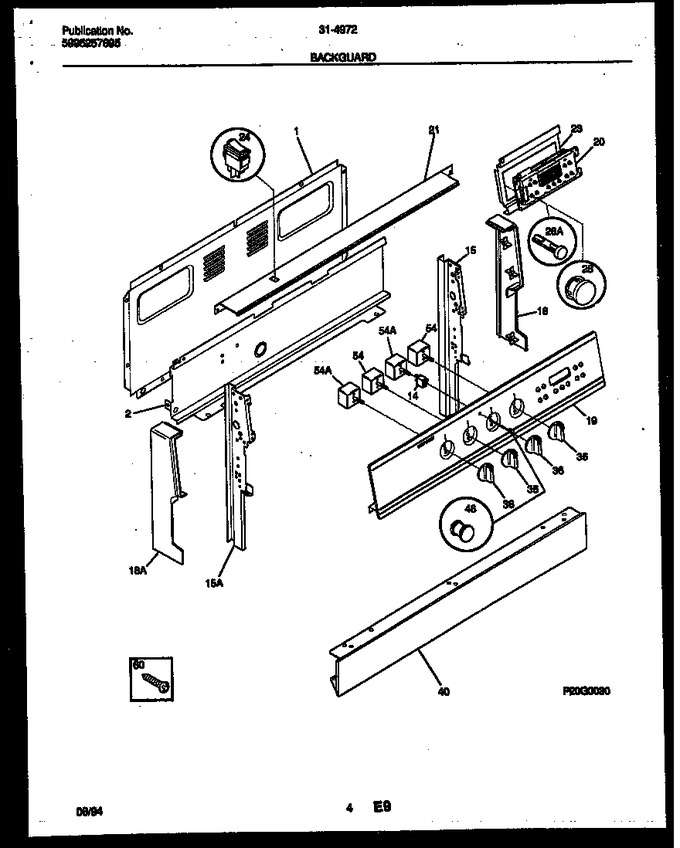

03 - Backguard


04 - Body Parts


05 - Body Parts


07 - Cooktop And Drawer Parts


08 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316075201		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
14	316022503		Light/lamp, Indicator, 250 V, (3)			Immediately	$ 70.16
15	316023110		Support-backguard, Rh		Appelez-nous	-
18	316021802		End Cap, White, Rh		Appelez-nous	-
19	316014710		Panel-control, Metal		Appelez-nous	-
20	316037000		Clock/timer, Eoc		Appelez-nous	-
21	316014802		Trim-canopy/shield, White		Appelez-nous	-
23	316015007		Bracket-clock Mtg		Appelez-nous	-
24	5303285911		Switch-oven Light, Rocker, White				$ 10.01
28	316015103		Push Button, Clock/timer/eoc, Gray, (11)				$ 11.60
36	316015201		Knob-control, White		Appelez-nous	-
40	316009263		Panel-manifold		Appelez-nous	-
46	316040200		Lens-light/lamp, Indicator, Amber		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*10611	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
15A	316023111		Support-backguard, Lh		Appelez-nous	-
18A	316021803		End Cap, White, Lh		Appelez-nous	-
28A	316036900		Shaft-push Button, Clock/timer/eoc, (11)				$ 11.24
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
