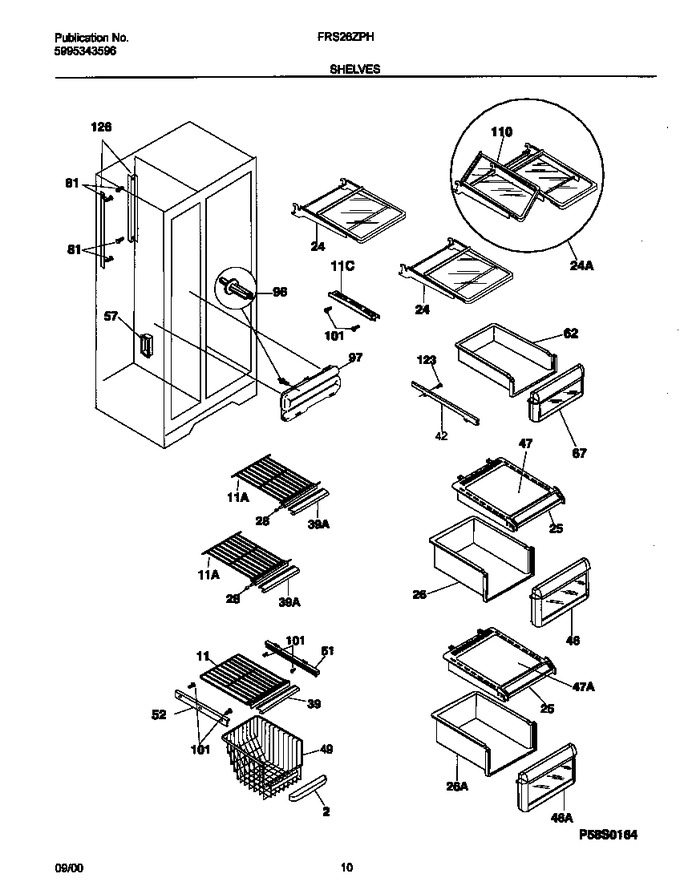

SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice Dispenser


09 - Ice Container


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298147		Trim-basket				$ 60.38
11	5304405879		Shelf-freezer,fixed Wire		Appelez-nous	-
11	218298003		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
11	240324101		Shelf-pizza				$ 59.91
24	215029002		Shelf-``spill-safe``,cantilever ,sliding		Appelez-nous	-
24	218636601		Shelf-``spill-safe``, Split, Flip/slide, Includes 110				$ 317.52
25	218147701		Cover-storage Pan				$ 123.56
26	5303289500		Pan-storage, Upper   (Replaces: 5303299657)				$ 174.74
26	5303289501		Pan-storage,lower				$ 164.85
28	08013638		End Cap-shelf, Protector, Lower Fzr Shelf		Appelez-nous	-
39	215217558		Trim-frzr Shelf		Appelez-nous	-
39	215217543		Trim-frzr Shelf		Appelez-nous	-
42	215002301		Hanger-pan / Tray, Lh				$ 65.82
46	5304411659		Front-storage Pan, Upper   (Replaces: 218278201)				$ 206.96
46	5304411659		Front-storage Pan, Lower   (Replaces: 218278202)				$ 206.96
47	5303289387		Insert-pan Cover,glass,clear		Appelez-nous	-
47	215723574		Insert-pan Cover, Glass, Clear, W/teal Graphics		Appelez-nous	-
49	5303296573		Basket-sliding		Appelez-nous	-
51	5303296575		Hanger-basket, Rh				$ 49.78
52	215162502		Hanger, Basket, Lh, With Spring				$ 101.35
57	5303271653		Ferrule-inner				$ 20.27
62	218285701		Tray-deli		Appelez-nous	-
67	218278501		Front-deli Tray		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank   (Replaces: 241500101)				$ 121.63
101	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger   (Replaces: 215005000)				$ 14.18
110	218641901		Shelf-``spill-safe``, Flip-up		Appelez-nous	-
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
*75256	215019701		Frame-cantilever, Spill-safe Shlf				$ 144.80
*75257	215036602		Shelf-``spill-safe``,sliding ,included W/24		Appelez-nous	-
*75258	5303289586		Trim-storage Pan Cvr,lower		Appelez-nous	-
*75259	5303307878		Trim-storage Pan Cvr, Upper, W/humidity Hole		Appelez-nous	-
*75260	5303307881		Control-humidity		Appelez-nous	-
*75261	215002401		Hanger-pan/tray, Rh				$ 85.84
*75262	5303299662		Hanger-basket, Lh				$ 119.18
126A	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
126B	218867402		Channel`auger Mtg ,rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
