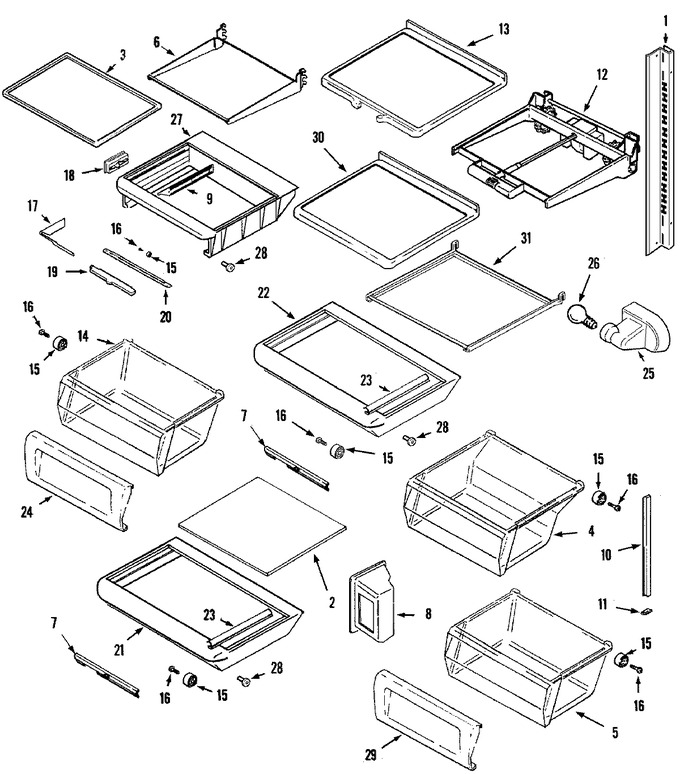

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP1163283		Screw   (Replaces: 61005467)	13			$ 6.47
1	61005330		Rail, Shelf Support	13	Appelez-nous	-
1	61005902		Screw, Rail (flat Head)	13	Appelez-nous	-
2	61003662		Glass, Crisper Shelf (upr)-na	13	Appelez-nous	-
2	61003664		Glass, Crisper Shelf (lwr)	13	Appelez-nous	-
3	61003734		Glass, Meat Shelf (spillproof)	13	Appelez-nous	-
4	61005712		Pan Assy., Crisper (upr)	13	Appelez-nous	-
5	61005714		Pan Assy., Crisper (lwr)	13	Appelez-nous	-
6	61005483		Frame, Shelf	13	Appelez-nous	-
7	61003781		Slide, Control	13	Appelez-nous	-
8	WP61006081		Cover Assy., Air Return   (Replaces: 61004287)	13			$ 80.27
9	489392		Screw   (Replaces: 415013-35)	13			$ 12.02
9	61003723		Cover, Meat Control Tape	13	Appelez-nous	-
10	61003888		Strip, Filler (sides)	13	Appelez-nous	-
11	400019-1		Screw	13	Appelez-nous	-
11	61004110		Base, Filler Strip (lt)	13	Appelez-nous	-
11	61004109		Base, Filler Strip (rt)	13	Appelez-nous	-
12	61005332		Frame Assy., Elevator Shelf	13	Appelez-nous	-
12	61004480		Glide, Shelf	13	Appelez-nous	-
13	61005334		Shelf, Elevator	13	Appelez-nous	-
14	61005716		Pan Assy., Meat	13	Appelez-nous	-
15	WP61002307		Roller   (Replaces: 61002307)	13		Immediately	$ 7.30
15	WP61002307		Roller   (Replaces: 61002307)	22		Immediately	$ 7.30
15	67423-2		Roller	13			$ 20.83
16	65275-6		Screw	13			$ 5.48
16	WP61002308		Screw   (Replaces: 61004728)	13			$ 6.89
16	WP61002308		Screw   (Replaces: 61004728)	22			$ 6.89
17	61003722		Tape, Meat Control	13	Appelez-nous	-
18	61003785		Duct, Air (meat)	13	Appelez-nous	-
18	61003725		Retainer, Duct	13	Appelez-nous	-
18	61006055		Duct, Air (meat)	22	Appelez-nous	-
19	61003674		Slide, Control (meat)	13	Appelez-nous	-
20	61003784		Cover, Meat Pan Slide	13	Appelez-nous	-
20	489392		Screw   (Replaces: 415013-35)	13			$ 12.02
21	61006154		Frame, Crisper Shelf (lwr)	22	Appelez-nous	-
21	61003712		Shelf, Crisper (lwr)	13	Appelez-nous	-
22	61006153		Frame, Crisper Shelf (upr)	22	Appelez-nous	-
22	61003713		Shelf, Crisper (upr)	13	Appelez-nous	-
23	61003715		Seal, Crisper Side (lwr)	13	Appelez-nous	-
23	61003714		Seal, Crisper Side (upr)	13	Appelez-nous	-
24	61004507		Front Assy., Meat Pan	13	Appelez-nous	-
25	61005631		Receptacle Assy., Bulb	13	Appelez-nous	-
26	W11618980		Bulb, Light (40w)   (Replaces: 61002812)	13			$ 19.22
27	61006087		Frame, Meat Shelf	22	Appelez-nous	-
27	61003770		Frame, Meat Shelf	13	Appelez-nous	-
28	61005338		Screw	13	Appelez-nous	-
28	67764-1		Support, Crisper Shelf	13			$ 8.05
28	WP61005337		Support, Crisper Shelf   (Replaces: 61005337)	13		Immediately	$ 10.46
28	WP489478		Screw   (Replaces: 400017-1)	13			$ 6.98
29	61004508		Front Assy., Crisper Pan	13	Appelez-nous	-
30	61005333		Shelf, Spillproof	13	Appelez-nous	-
30	61005335		Shelf, Spillproof (lwr)	13	Appelez-nous	-
31	61005336		Frame, Shelf (lwr)	13	Appelez-nous	-
