SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Oven

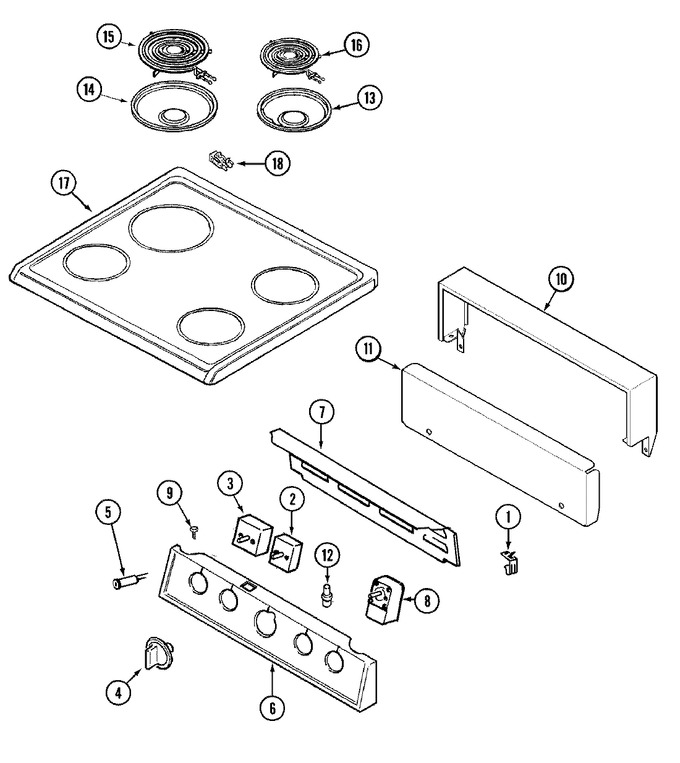

04 - Top Assembly
05 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 2 | 7403P207-60 | Switch, Selector | 01 |
|
- | ||||
| 3 | WPW10179654 | Switch, Infinite (2400w) (Replaces: 7403P289-60) | 01 |
|
$ 144.45 | ||||
| 3 | WP74002328 | Switch, Infinite (1400w) (Replaces: 7403P290-60) | 01 |
|
$ 144.06 | ||||
| 3 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 4 | 7739P005-60 | Knob, Selector Switch | 01 |
|
- | ||||
| 4 | 7737P003-60 | Knob, Surface Switch | 01 |
|
- | ||||
| 4 | 7735P006-60 | Knob, Thermostat | 01 |
|
- | ||||
| 5 | 7407P072-60 | Light, Indicator | 01 |
|
- | ||||
| 5 | 7407P071-60 | Light, Indicator | 01 |
|
- | ||||
| 6 | 2614F064-71 | Panel Control Wht | 01 |
|
- | ||||
| 7 | 3604F139-51 | Shield, Control | 01 |
|
- | ||||
| 8 | 7404P056-60 | Thermostat | 01 |
|
- | ||||
| 8 | 7101P125-60 | Screw, Thermostat | 01 |
|
- | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 10 | 3603F017-50 | Frame, Backguard | 01 |
|
- | ||||
| 11 | 2601F306-71 | Panel, Bkgd | 01 |
|
- | ||||
| 11 | 7719P046-60 | Plate, Name Hardwick | 01 |
|
- | ||||
| 12 | 8024P003-60 | Strike, Main Top | 01 |
|
- | ||||
| 13 | WPW10196406 | Bowl, Drip (w/hole) (Replaces: 7725P007-60) | 01 |
|
Immediately | $ 12.05 | |||
| 13 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P008-60) | 01 |
|
Immediately | $ 12.05 | |||
| 14 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P009-60) | 01 |
|
Immediately | $ 15.56 | |||
| 15 | WPY04000035 | Element (8``) (Replaces: 7406P040-60) | 01 |
|
$ 160.60 | ||||
| 16 | WPY04000036 | Element (6``) (Replaces: 7406P038-60) | 01 |
|
$ 88.70 | ||||
| 17 | 2002F065-81 | Top, Main (wht) | 01 |
|
- | ||||
| 18 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 01 |
|
Immediately | $ 28.45 | |||
| 19 | 5125A200-60 | Harness, Control Panel | 01 |
|
- | ||||
| 20 | 74002468 | Manual, Use & Care | 01 |
|
- | ||||
| 21 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
