Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3051156 Glass-main Top Appelez-nous -
2 3018329 Panel-glass Support Appelez-nous -
3 5303051334 Trim-ring Outer Sm (2) Appelez-nous -
4 3051339 Trim-ring Inner Large (1) Appelez-nous -
4 3051337 Trim-ring Inner Sm (2) Appelez-nous -
4 3051338 Trim-ring Inner Med (1) Appelez-nous -
5 3051122 Channel-top Element Mtg Med (1) Appelez-nous -
6 5303051142 Element-top Sm (2) Appelez-nous -
7 3018331 Seal-top Element Med (1) Appelez-nous -
7 3018330 Seal-top Element Small (2) Appelez-nous -
7 3018332 Seal-top Element Lg (1) Appelez-nous -
8 3051885 Switch-thermal Protector (4) Appelez-nous -
9 316075103 Element-bake   (Replaces: 3203534) In-Stock Immediately $ 42.36

10 5303051140 Element-broil Special Order $ 202.71

11 3051373 Support-broil Element Appelez-nous -
12 355T377S01 Trim-main Top Front Appelez-nous -
13 5303206607 Panel-manifold Appelez-nous -
14 08067746 Brkt-main Top Hng Lh Appelez-nous -
15 3204894 Trim-main Top Frame Appelez-nous -
16 5308016255 Cleaner-element Special Order $ 38.85

14A 08067747 Brkt-main Top Hng Rh Appelez-nous -
3A 3051335 Trim-ring Outer Med (1) Appelez-nous -
3B 5303051336 Trim-ring Outer Large (1) Appelez-nous -
5A 3051120 Channel-top Element Mtg Sm (2) Appelez-nous -
6A 5308014251 Element-top Med (1) Appelez-nous -
6B 5308014263 Element-top Large (1) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

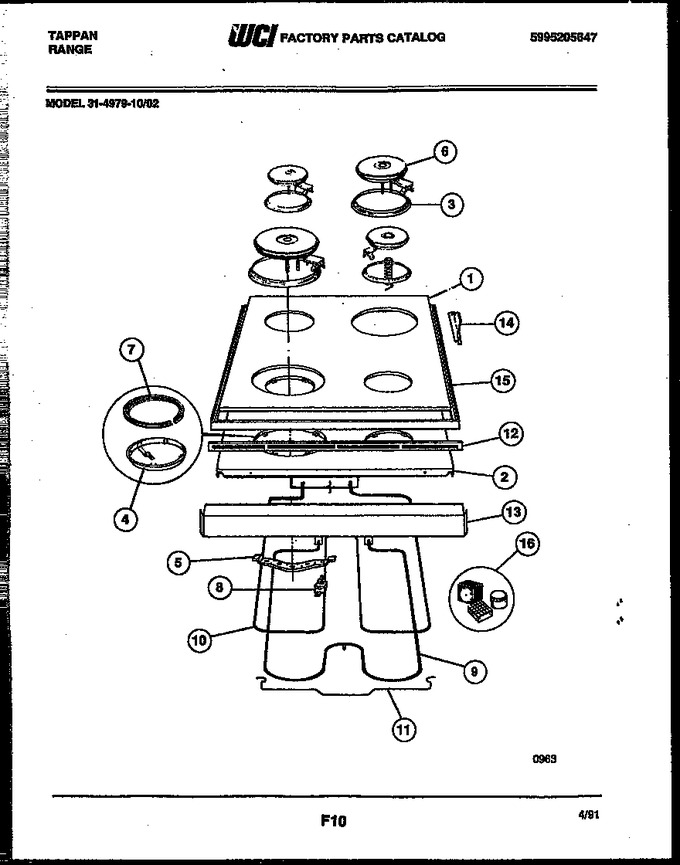

Diagram for 31-4979-00-02
