SELECT A DIAGRAM

01 - Body

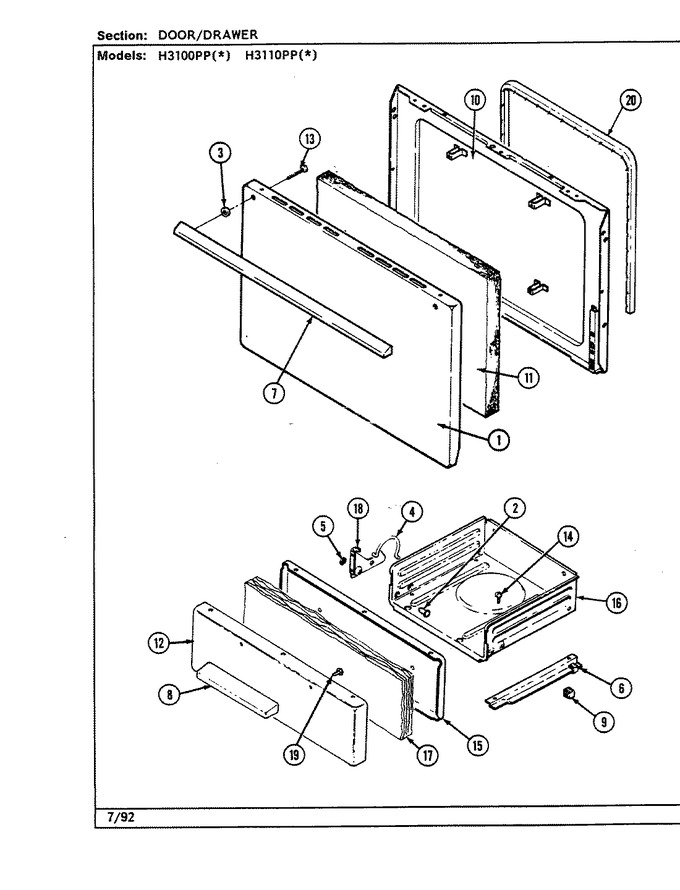

02 - Door/drawer (h3110ppx)


03 - Door/drawer (h3120spx)


04 - Gas Controls


05 - Top Assembly (h311oppx, H3120spx)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401F096-70		Panel, Door (blk)	01	Appelez-nous	-
1	W11233072		Screw   (Replaces: 7101P290-60)	01		Immediately	$ 12.62
1	2401F096-74		Panel, Door (alm)	01	Appelez-nous	-
2	7113P012-60		Pin, Broiler Hinge	01	Appelez-nous	-
3	8010P084-60		Spacer, Handle (blk)	01	Appelez-nous	-
4	7803P065-60		Spring, Hinge (rt)	01	Appelez-nous	-
4	7803P064-60		Spring, Hinge (lt)	01	Appelez-nous	-
5	7103P022-60		Nut, Grip	01	Appelez-nous	-
6	W11233072		Screw   (Replaces: 7101P290-60)	01		Immediately	$ 12.62
6	3404F022-51		Track, Drawer (lt)	01	Appelez-nous	-
6	3404F023-51		Track, Drawer (rt)	01	Appelez-nous	-
7	7701P030-60		Handle, Door (chr)	01	Appelez-nous	-
8	7701P012-60		Handle, Drawer (chr)	01	Appelez-nous	-
9	8016P011-60		Glide, Drawer	01	Appelez-nous	-
9	8016P012-60		Glide, Drawer Rear	01	Appelez-nous	-
10	2402W187-19		Lining, Door	01	Appelez-nous	-
11	4804F011-60		Insulation, Door	01	Appelez-nous	-
12	2403F028-74		Panel, Drawer (alm)	01	Appelez-nous	-
13	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	01		Immediately	$ 7.69
14	W11233072		Screw   (Replaces: 7101P290-60)	01		Immediately	$ 12.62
15	2404F035-19		Lining, Broiler Drawer	01	Appelez-nous	-
16	3407F012-19		Drawer, Broiler	01	Appelez-nous	-
17	4804F025-60		Insulation	01	Appelez-nous	-
18	3418F079-51		Hinge, Drawer (lt)	01	Appelez-nous	-
18	3418F080-51		Hinge, Drawer (rt)	01	Appelez-nous	-
19	74002481		Screw, Handle   (Replaces: 7101P283-60)	01			$ 5.82
20	WP7212P043-60		Seal, Silicone   (Replaces: 7212P034-60)	01		Immediately	$ 56.83

    View Diagram in Separate Window       Print Part List
