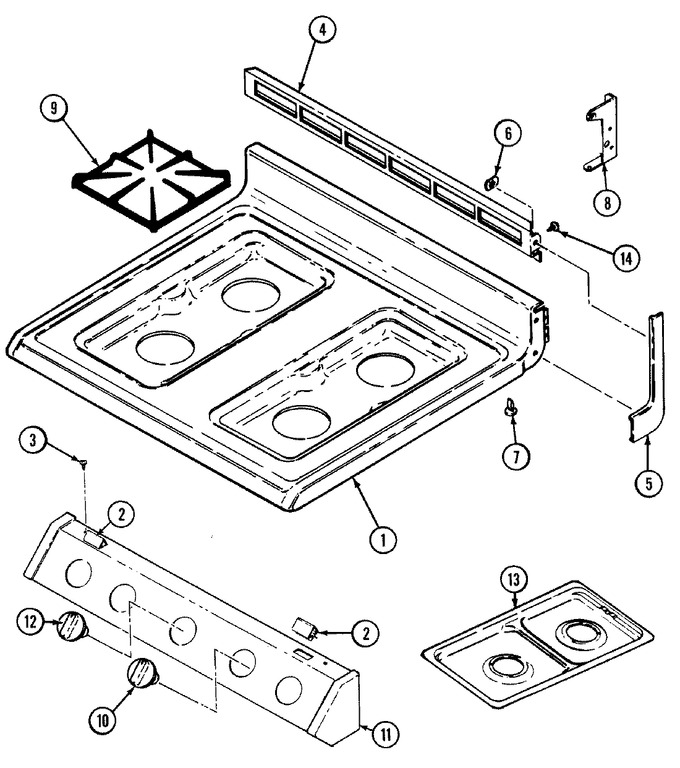

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W085-81 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 3 | 7101P311-60 | Screw----na | 10 |
|
- | ||||
| 4 | 3608F042-26 | Trim, Vent (dark Gray) | 10 |
|
- | ||||
| 5 | 7746P032-60 | End Cap, Top (rt-wht) | 10 |
|
- | ||||
| 5 | 7746P033-60 | End Cap, Top (lt-wht) | 10 |
|
- | ||||
| 6 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 7 | 8016P013-60 | Glide | 10 |
|
- | ||||
| 8 | 3807F453-51 | Support, Main Top (rt) | 10 |
|
- | ||||
| 8 | 3807F454-51 | Support, Main Top (lt) | 10 |
|
- | ||||
| 9 | 2003W027-26 | Grate (gry) | 10 |
|
- | ||||
| 10 | 7733P092-60 | Knob, Valve | 10 |
|
- | ||||
| 11 | 7712P172-60 | Panel, Manifold (wht) | 10 |
|
- | ||||
| 12 | 7731P090-60 | Knob, Thermostat | 10 |
|
- | ||||
| 13 | 5401A452-60 | Drip Bowl Kit (accessory) | 10 |
|
- | ||||
| 14 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 |
