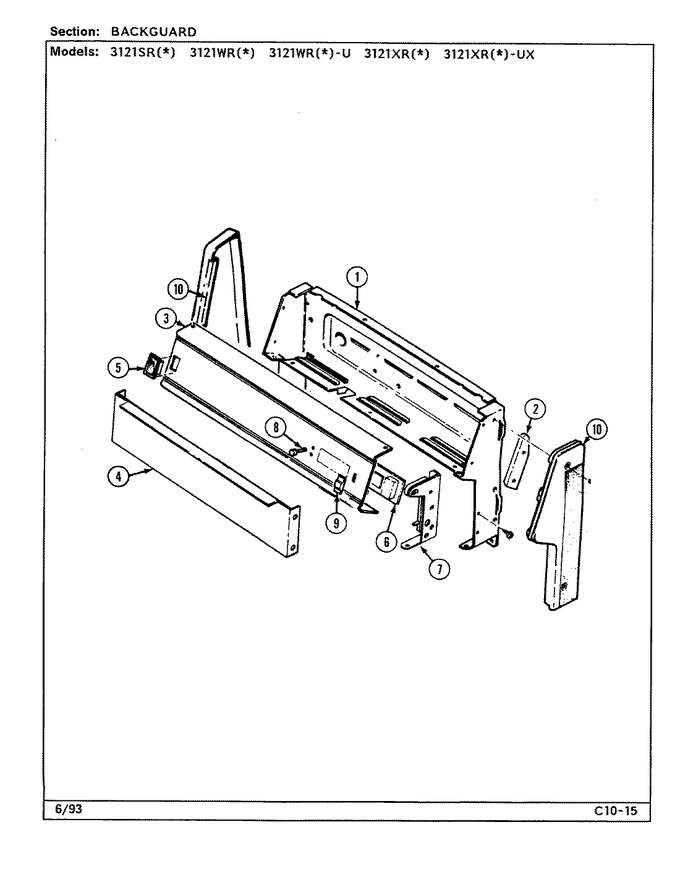

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F088-51 | Housing, Backguard | 01 |
|
- | ||||
| 1 | 74002162 | Housing, Control Panel | 01 |
|
- | ||||
| 2 | 3807F435-45 | Support, Control Pnl (rt) | 01 |
|
- | ||||
| 2 | 3807F436-45 | Support, Control Pnl (lt) | 01 |
|
- | ||||
| 3 | 12001148 | Kit, Control Panel (wht) | 01 |
|
- | ||||
| 3 | 7703P636-60 | Panel, Control White | 01 |
|
- | ||||
| 4 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 01 |
|
Immediately | $ 12.62 | |||
| 5 | 7403P314-60 | Switch, Rocker (wht) | 01 |
|
- | ||||
| 6 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 6 | W10799767 | Clock (wht) (Replaces: 7602P117-60) | 01 |
|
$ 493.35 | ||||
| 6 | 7101P293-60 | Screw | 01 |
|
- | ||||
| 7 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 01 |
|
Immediately | $ 12.62 | |||
| 7 | 3418D097-60 | Hinge, Main Top (lt) | 01 |
|
- | ||||
| 7 | 3418D098-60 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 8 | 7711P473-60 | Button, Set (wht) | 01 |
|
- | ||||
| 9 | 7711P472-60 | Button, Slide (wht)----na | 01 |
|
- | ||||
| 10 | 7726P097-60 | End Cap (rt-wht) | 01 |
|
- | ||||
| 10 | 7726P085-60 | End Cap (lt-wht) | 01 |
|
- | ||||
| 10 | 7726P086-60 | End Cap (rt-wht) | 01 |
|
- | ||||
| 10 | 7726P098-60 | End Cap (lt-wht)----na | 01 |
|
- | ||||
| 11 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 01 |
|
$ 7.68 | ||||
| 12 | 8036P003-60 | Shield, Sight | 01 |
|
- | ||||
| 14 | 3801F266-45 | Bracket Clock Support | 01 |
|
- | ||||
| 14 | 3801F340-45 | Bracket, Clock | 01 |
|
- | ||||
| 15 | 5180D138-60 | Harness, Control Panel | 01 |
|
- | ||||
| 16 | 16007436 | Manual, Use & Care | 01 |
|
- | ||||
| 16 | 8113P042-60 | Manual, Use & Care | 01 |
|
- | ||||
| 17 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
