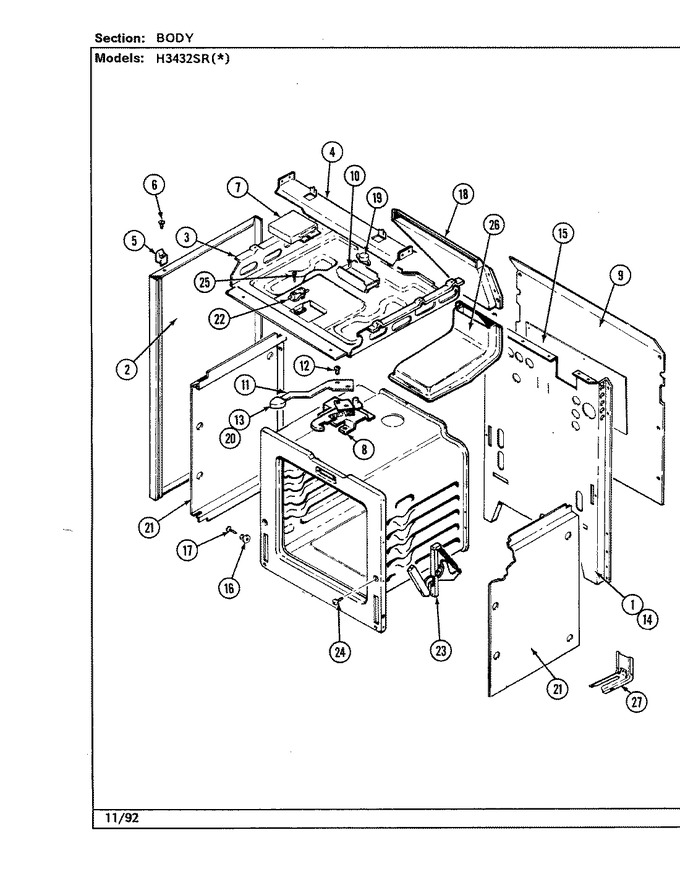

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F179-80 | Back, Main | 01 |
|
- | ||||
| 2 | 2618F085-71 | Panel, Side (wht) | 01 |
|
- | ||||
| 2 | 2618F099-71 | Panel, Side (wht) | 15 |
|
- | ||||
| 2 | 2618F085-74 | Panel, Side (alm) | 01 |
|
- | ||||
| 2 | 2618F099-74 | Panel, Side (alm) | 15 |
|
- | ||||
| 3 | 4011F210-80 | Bottom, Burner Box | 01 |
|
- | ||||
| 4 | 3807F411-51 | Support, Burner | 01 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 01 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 01 |
|
- | ||||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 7 | 4005F347-51 | Cover Lock & Switch | 01 |
|
- | ||||
| 8 | 8002P024-60 | Latch Assy. | 01 |
|
- | ||||
| 8 | 4804F028-60 | Insulation, Latch Assy. | 01 |
|
- | ||||
| 9 | 4005F331-51 | Cover, Main Back Wire | 01 |
|
- | ||||
| 10 | WP74004005 | Screw (Replaces: 7101P076-60) | 01 |
|
$ 6.95 | ||||
| 10 | 3807F420-51 | Support, Thermal Disc | 01 |
|
- | ||||
| 11 | 7109P015-60 | Washer | 01 |
|
- | ||||
| 11 | 8009P015-60 | Lever Lock | 01 |
|
- | ||||
| 12 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 01 |
|
$ 4.29 | ||||
| 13 | 7701P088-60 | Handle, Latch (blk) | 01 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 15 | 3604F165-51 | Shield, Flue (lower) | 01 |
|
- | ||||
| 16 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 01 |
|
$ 7.07 | ||||
| 17 | W11772394 | Screw (Replaces: 7101P300-60) | 01 |
|
Immediately | $ 10.94 | |||
| 18 | 4022W005-19 | Extension, Flue Box | 01 |
|
- | ||||
| 19 | 7403P275-60 | Switch, High Limit | 01 |
|
- | ||||
| 20 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 21 | 3804F103-51 | Retainer, Insulation (side) | 01 |
|
- | ||||
| 22 | 3801F267-45 | Bracket, Switch | 01 |
|
- | ||||
| 22 | 7403P228-60 | Switch, Door Latch | 01 |
|
- | ||||
| 23 | 7106P032-60 | Hinge, Door | 01 |
|
- | ||||
| 24 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 25 | 7101P031-60 | Screw | 01 |
|
- | ||||
| 26 | 4006W113-45 | Box, Vent | 01 |
|
- | ||||
| 27 | 5195D111-60 | Harness | 01 |
|
- | ||||
| 27 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 01 |
|
Immediately | $ 4.69 | |||
| 27 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 01 |
|
$ 26.33 |
