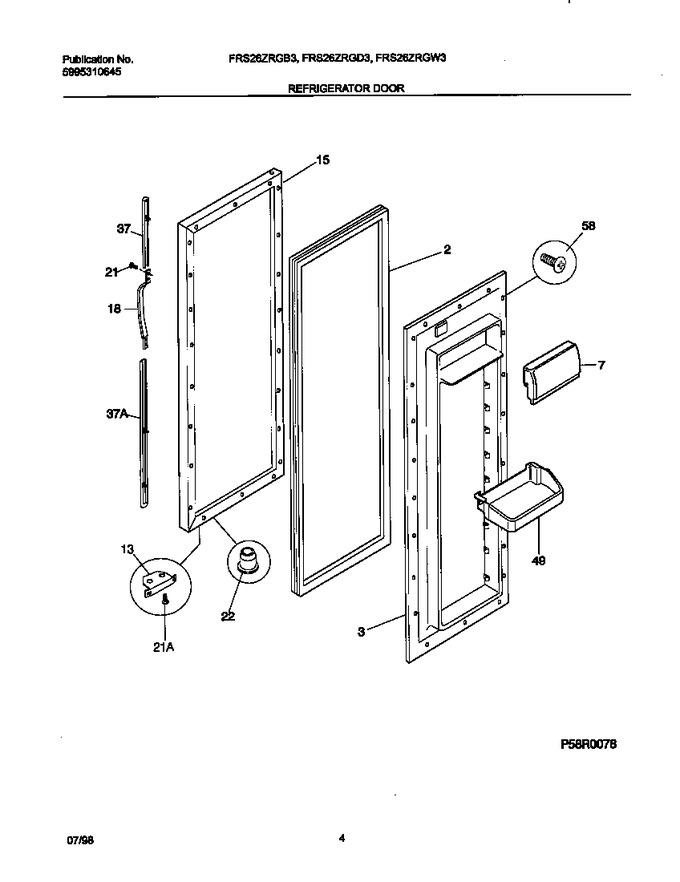

SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls S


07 - System


08 - Ice Dispenser


09 - Ice Container


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215403201		Panel-inner Door, Refr		Appelez-nous	-
7	5303308608		Door-dairy				$ 196.82
13	5303289522		Door Stop				$ 40.17
15	5303918066		Panel-refr Door,white ,w/insulation		Appelez-nous	-
18	215826401		Handle-door ,white				$ 192.78
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
37	215867053		Trim-handle, White, Lower, W/chrome Band				$ 70.72
37	215867055		Trim-handle, White, Upper, W/chrome Band				$ 51.14
49	215398907		Bin-door,gallon				$ 152.30
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
*82925	215782300		Lock-handle Trim,snap-in				$ 34.49
*82926	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*82927	218676001		Band-decorative,chrome				$ 36.17
*82928	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
